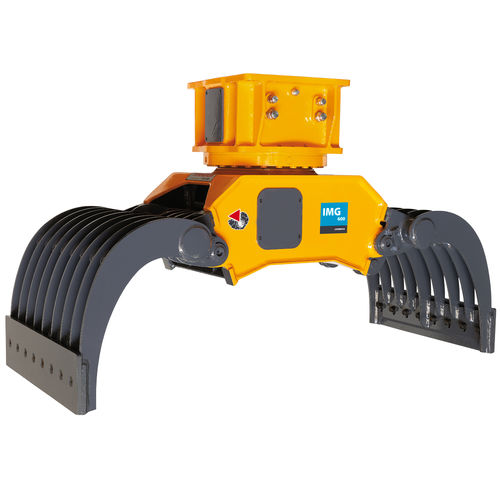

Hydraulic sorting grapple IMG 600

for the recycling industryconstruction site

Product
IMG 600 — Multi grab, D Series

Overview

• Multi grab for demolition, sorting and material handling applications
• Designed for excavators in the 5 ÷ 16 ton class
• Attachment plate compatible with HP 900 breaker

Main characteristics

• Load capacity: 320 l
• Maximum opening: 1700 mm
• Attachment operating weight*: 600 Kg

Applicable machines

• Compact excavator
• Backhoe loader
• Wheeled excavator

Technical specifications

• Excavator weight: 5 ÷ 16 ton
• Maximum working pressure: 300 bar
• Maximum oil delivery: 50 l/min
• Hydraulic connections for cylinder: 1/2”
• Maximum rotation pressure: 100 bar
• Maximum rotation oil flow: 10 l/min
• Hydraulic connections for rotation: 3/8”
• Maximum force at blade/teeth: 4000 Kg
• Attachment plate compatibility with breaker: HP 900
• Attachment operating weight*: 600 Kg
• Load capacity: 320 l
• Maximum opening: 1700 mm
• Depth: 700 mm

Notes
Attachment operating weight includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration. All illustrations and numerical data in this catalog are indicative and subject to change at our discretion and without notice.
