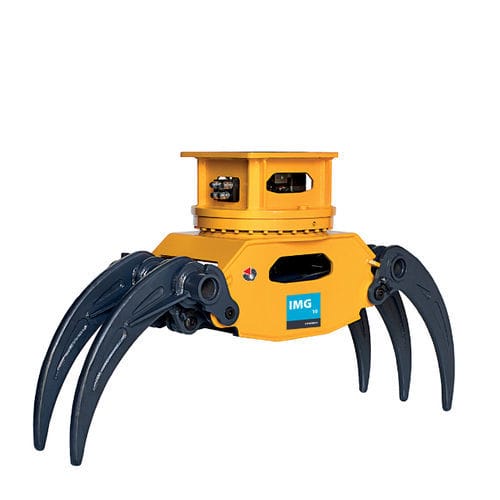

Hydraulic load lifting grab IMG 10 H

for excavators

Product
Multi-grab material handling jaws designed for loading, handling and positioning of bulk materials. Model IMG 10, H Series. Compatible with hammer coupling HP 1200.

Technical specifications

• Excavator weight: 9 ÷ 16 ton
• Maximum working pressure: 300 bar
• Maximum oil delivery: 50 l/min
• Hydraulic connections for cylinder: 1/2”
• Maximum rotation pressure: 100 bar
• Maximum rotation oil flow: 20 l/min
• Hydraulic connections for rotation: 1/2”
• Maximum force at blade/teeth: 5000 Kg
• Compatibility of attachment plate with hammer: HP 1200
• MATERIAL HANDLING JAWS: 3+2
• Attachment operating weight*: 850 Kg
• Maximum opening: 1900 mm
• Depth: 600 mm
• Type of carrier: (not specified)

Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.

Characteristics / technical specifications

• Excavator weight: 9 ÷ 16 ton
• Maximum working pressure: 300 bar
• Maximum oil delivery: 50 l/min
• Hydraulic connections for cylinder: 1/2”
• Maximum rotation pressure: 100 bar
• Maximum rotation oil flow: 20 l/min
• Hydraulic connections for rotation: 1/2”
• Maximum force at blade/teeth: 5000 Kg
• Compatibility of attachment plate with hammer: HP 1200
• MATERIAL HANDLING JAWS: 3+2
• Attachment operating weight*: 850 Kg
• Maximum opening: 1900 mm
• Depth: 600 mm
• Type of carrier: (not specified)
