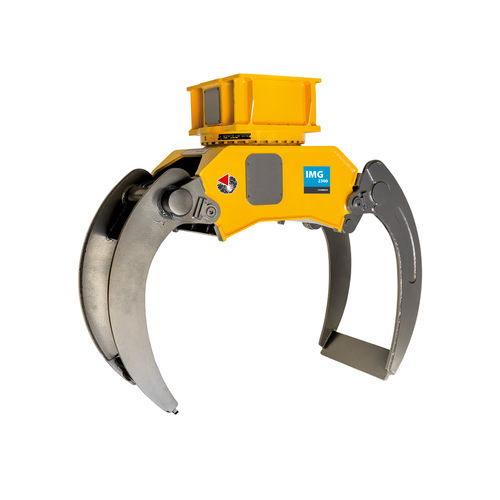

Excavator handling and tamping grapple IMG 2300for woodfor material handling equipmentfor tracked vehicles
Add to favorites
Compare this product
Characteristics
- Product applications
- for excavators, for wood, for material handling equipment, for tracked vehicles
Description
Product
Multi-grapple from the MULTI GRABS family. Model: IMG 2300. Series: T Series. Designed for tracked excavators within the specified carrier weight range.
Key specifications
Compatibility & applications
Designed for integration with hydraulic rotation and compatible demolition hammers. Applicable to material handling, demolition and forestry/wood processing when fitted with timber jaws option. Installation requires hydraulic outputs and connections matching the specified flows and pressures.
Notes
Technical specifications
Multi-grapple from the MULTI GRABS family. Model: IMG 2300. Series: T Series. Designed for tracked excavators within the specified carrier weight range.
Key specifications
- Carrier weight range: 22 ÷ 40 ton
- Maximum working pressure (cylinder): 350 bar
- Maximum oil flow (cylinder): 130 l/min
- Hydraulic connections (cylinder): 3/4”
- Maximum rotation pressure: 110 bar
- Maximum rotation oil flow: 30 l/min
- Hydraulic connections (rotation): 1/2”
- Maximum force at blade/teeth: 10000 Kg
- Compatibility with breaker plate: HP 3000 ÷ HP 4000
- Timber jaws: not specified
- Attachment operating weight*: 2400 Kg
- Maximum opening: 1710 mm
- Depth: 1050 mm
- Type of carrier: Tracked excavator
Compatibility & applications
Designed for integration with hydraulic rotation and compatible demolition hammers. Applicable to material handling, demolition and forestry/wood processing when fitted with timber jaws option. Installation requires hydraulic outputs and connections matching the specified flows and pressures.
Notes
- * The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
- All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We reserve the right to modify them to improve and continuously develop the product.
Technical specifications
- Carrier weight: 22 ÷ 40 ton
- Maximum working pressure: 350 bar
- Maximum oil delivery: 130 l/min
- Hydraulic connections for cylinder: 3/4”
- Maximum rotation pressure: 110 bar
- Maximum rotation oil flow: 30 l/min
- Hydraulic connections for rotation: 1/2”
- Maximum force at blade/teeth: 10000 Kg
- Compatibility of attachment plate with hammer: HP 3000 ÷ HP 4000
- TIMBER JAWS: (not specified)
- Attachment operating weight*: 2400 Kg
- Maximum opening: 1710 mm
- Depth: 1050 mm
- Type of carrier: Tracked excavator
