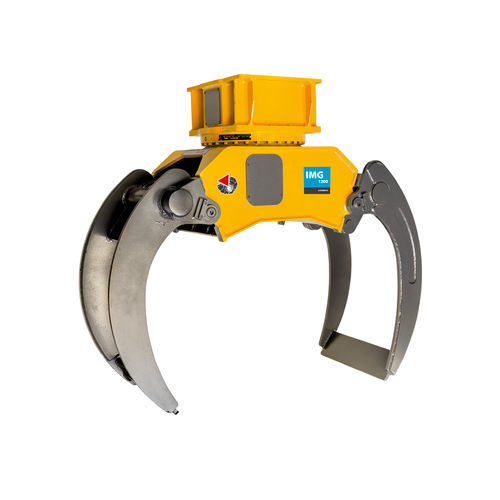

Hydraulic grab IMG 1200rotaryfor excavators
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Other characteristics
- rotary, for excavators
- Carrier weight
Max.: 22,000 kg
(48,502 lb)Min.: 12,000 kg
(26,455 lb)- Grapnel weight
1,250 kg
(2,756 lb)
Description
Product
MULTI GRAB multi-purpose hydraulic grapple attachment for excavators.
Model: IMG 1200
Series: T Series
Technical specifications
Excavator weight: 12 ÷ 22 ton
Maximum working pressure: 300 bar
Maximum oil delivery: 70 l/min
Hydraulic connections for cylinder: 3/4”
Maximum rotation pressure: 100 bar
Maximum rotation oil flow: 20 l/min
Hydraulic connections for rotation: 1/2”
Maximum force at blade/teeth: 6000 Kg
Compatibility of attachment plate with hammer: HP 2000 - HP 2500
TIMBER JAWS: not specified
Attachment operating weight*: 1250 Kg
Maximum opening: 1360 mm
Depth: 830 mm
Type of carrier: Wheeled excavator; Tracked excavator
Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.
Characteristics / Technical specifications
MULTI GRAB multi-purpose hydraulic grapple attachment for excavators.
Model: IMG 1200
Series: T Series
Technical specifications
Excavator weight: 12 ÷ 22 ton
Maximum working pressure: 300 bar
Maximum oil delivery: 70 l/min
Hydraulic connections for cylinder: 3/4”
Maximum rotation pressure: 100 bar
Maximum rotation oil flow: 20 l/min
Hydraulic connections for rotation: 1/2”
Maximum force at blade/teeth: 6000 Kg
Compatibility of attachment plate with hammer: HP 2000 - HP 2500
TIMBER JAWS: not specified
Attachment operating weight*: 1250 Kg
Maximum opening: 1360 mm
Depth: 830 mm
Type of carrier: Wheeled excavator; Tracked excavator
Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.
Characteristics / Technical specifications
- Excavator weight: 12 ÷ 22 ton
- Maximum working pressure: 300 bar
- Maximum oil delivery: 70 l/min
- Hydraulic connections for cylinder: 3/4”
- Maximum rotation pressure: 100 bar
- Maximum rotation oil flow: 20 l/min
- Hydraulic connections for rotation: 1/2”
- Maximum force at blade/teeth: 6000 Kg
- Compatibility of attachment plate with hammer: HP 2000 - HP 2500
- TIMBER JAWS: not specified
- Attachment operating weight*: 1250 Kg
- Maximum opening: 1360 mm
- Depth: 830 mm
- Type of carrier: Wheeled excavator; Tracked excavator
