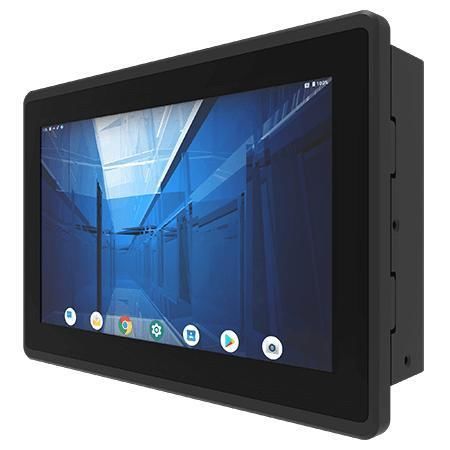

Multitouch screen panel PC W07MG3S-EHT1

PCAP capacitive touch screen7"1024 x 600

Overview
Winmate W07MG3S-EHT1 is a 7-inch E Series HMI Panel PC designed for machine control, factory automation and operator HMI. It features an ARM big.LITTLE CPU configuration (2 x A78 + 4 x A55), fanless cooling, front IP65 protection and ships with Android 13 by default. The product targets industrial buyers, OEMs and system integrators requiring low-power, long-lifecycle HMI solutions.

Key Features

• 7” 1024 x 600 resolution with Projected Capacitive Multi-Touch (PCAP)
• ARM CPU: 2 x A78 2.0GHz + 4 x A55 2.0GHz
• Fanless cooling and ultra-low power consumption
• Front IP65 water and dust protection
• Android 13 (default); Linux Yocto / Ubuntu optional

Certifications

• CE
• FCC

Product presentation / highlights
P-Cap touch supports single, dual and multi-touch gestures without pressure, improving accuracy and operator comfort. Android 13 provides enhanced personalization and connectivity (e.g. BT LE Audio, MIDI 2.0). Fanless design enables quiet operation and reduced energy draw. Front IP65 rating protects against water jets and fine dust common in industrial environments.

Technical specifications

• Display Size: 7.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1024 x 600
• Panel Brightness: 320 nits
• Contrast Ratio: 1000:1
• View Angles: 75,75,75,70
• Active Area: 153.6 x 90 mm
• Processor: ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz
• Memory: 4 GB LPDDR4
• Storage: Onboard 32 GB
• Operating System: Android 13 (Default); Linux Yocto 5.15.47 with QT 5.15 (Optional); Linux Ubuntu 22.04 (Optional)
• Dimensions: 185 x 128 x 56 mm
• Cut out: 175 x 118 mm
• Weight: 0.9 kg
• Mounting: Panel mount / VESA mount
• Enclosure: Plastic Housing
• Cooling System: Fanless Design
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Shock: MIL-STD-810H Method 516.8 Procedure I
• Vibration: MIL-STD-810H Method 514.8 Procedure I
• IP rating: Front IP65
• Certification: CE, FCC
• USB Ports: 2 x USB 2.0 Type A; 1 x USB 2.0 Type C (OTG)
• Serial Port: 1 x RS232/422/485 (Default RS232)
• LAN: 1 x LAN 10/100/1000 Mbps (Default); PoE (PD, 802.3at) optional
• Video: 1 x Micro HDMI Output (Optional)
• SD Card Slot: 1 x Micro SD card slot
• Accessories: 100~240V AC to DC Adapter; Power Cord; VESA screws; Mounting clips
• Power Rating: 12V DC with Terminal Block
• Adapter: 12V 50W
