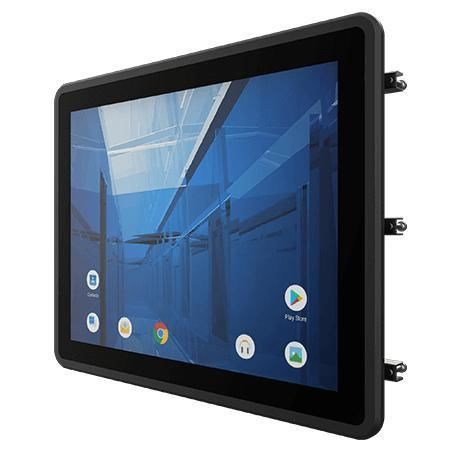

Winmate R15IM3S-EHC3 is a 15.0-inch E Series HMI Panel PC with a projected capacitive (P-CAP) multi-touch display and an ARM A53 quad-core processor. It is intended for machine control, factory automation and operator HMI tasks, featuring a fanless design, low power consumption, front IP65 protection and flexible OS options (Android or Linux).

Key features

• 15.0" 1024 x 768 resolution with Projected Capacitive multi-touch (P-CAP)
• ARM A53 Quad Core 2.0 GHz CPU
• Fanless cooling and low power consumption
• Front IP65 water and dust protection
• Android 11 (default); supports Android or Linux distributions

Certifications

• CE
• FCC

Product highlights
True Flat (Easy-to-clean)
True-flat front surface reduces dust accumulation on edges and facilitates cleaning and maintenance in industrial environments.

Next-generation computing power
ARM A53 platform delivers a balance of computing performance and low power consumption suitable for embedded industrial IoT applications.

P-Cap Touch (Scratch-resistant)
Glass cover lens protects the touch surface from scratches. P-Cap supports multi-touch (4-point) and fingertip operation for improved operator usability.

Mounting clips (Quick installation)
Panel mounting clips enable fast installation without drilling, preserving the panel appearance when removed.

Technical specifications

• Model: R15IM3S-EHC3
• Display - Size: 15.0 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch Screen (P-CAP)
• Display - Resolution: 1024 x 768
• Display - Panel Brightness: 300 nits
• Display - Contrast Ratio: 2000:1
• Display - View Angles: 88,88,88,88
• Display - Active Area: 304.1 x 228.1 mm
• System - Processor: ARM A53 (Quad Core 2.0 GHz)
• System - Memory: 4 GB LPDDR4
• System - Storage: eMMC onboard 32 GB
• System - Operating System: Android 11 (default, upgradeable to Android 13); Linux Yocto 5.15.47 with Qt 5.15 (optional); Linux Ubuntu Server 22.04 (optional)
• Mechanical - Dimension: 367 x 291 x 65.8 mm
• Mechanical - Cut out: 342 x 261 mm
• Mechanical - Weight: 3.0 kg
• Mechanical - Mounting: Panel mount; VESA mount
• Mechanical - Enclosure: Metal front bezel with plastic back cover
• Mechanical - Cooling System: Fanless design
• Environment - Operating Humidity: 10% to 90% RH, non-condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -20°C to 60°C
• Environment - Shock: MIL-STD-810H Method 516.8 Procedure I
• Environment - Vibration: MIL-STD-810H Method 514.8 Procedure I
• Environment - IP rating: Front IP65
• Certification: CE, FCC
• IO Ports - USB: 2 x USB 2.0 Type A; 1 x Micro USB 2.0 OTG
• IO Ports - Serial: 1 x RS232/422/485 (default RS232)
• IO Ports - LAN: 1 x LAN 10/100/1000 Mbps (default); PoE (PD, 802.3at) optional
• IO Ports - Video: 1 x Micro HDMI output (optional)
• IO Ports - SD Card Slot: 1 x Micro SD card slot (max 32 GB)
• Accessory: 100~240V AC to DC adapter; power cord; VESA screws; mounting clips
• Power - Power Rating: 12V DC with terminal block
• Power - Adapter: 12V 50W (adapter included example); optional 9~36V input support
