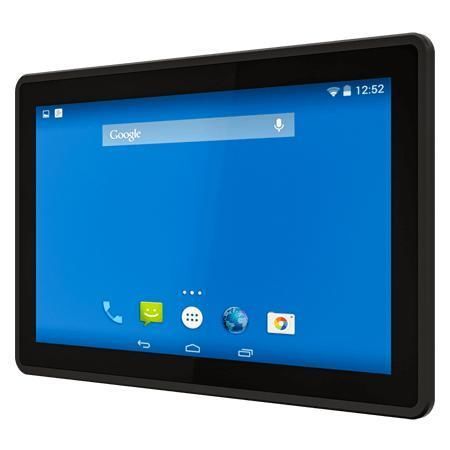

Multitouch screen panel PC W15FA3S-EHA4

PCAP capacitive touch screen15.6"1920 x 1080

Overview
Winmate W15FA3S-EHA4 is a 15.6" industrial HMI Panel PC based on the NXP i.MX6 E-Series Dual Core 1.0 GHz processor, designed for machine control, factory automation and operator HMI applications requiring fanless, low-power embedded computing and long lifecycle availability.

Key Features

• 15.6" 1920 x 1080 display with Projected Capacitive Multi-Touch (PCAP)
• NXP i.MX6 Dual Core 1.0 GHz processor
• Fanless cooling and ultra-low power consumption
• Front IP65 water- and dust-proof
• I/O: 1 x USB; 1 x RS232/422/485; 1 x CANBUS (D-sub9); 1 x Micro SD slot; 1 x Micro HDMI (optional); 1 x LAN RJ45 with PoE (PD, 802.3at)

Product Highlights
True Flat surface for easy cleaning and hygienic operation, avoiding dust buildup on edges.

Power over Ethernet (PoE): supports PoE (PD, 802.3at) to combine data and power over a single cable for simplified installation and centralized power management.

ARM-based computing: i.MX6 delivers efficient processing suitable for industrial IoT and edge HMI tasks.

P-Cap touch with glass cover lens: 4-point multi-touch, scratch resistance and usable with fingers and, in many configurations, with gloves.

Panel mounting clips for quick installation without drilling, preserving enclosure aesthetics.

CERTIFICATIONS

• CE
• FCC

Technical specifications

• Model: W15FA3S-EHA4
• Display - Size: 15.6 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch Screen
• Display - Resolution: 1920 x 1080
• Display - Brightness: 400 nits
• Display - Contrast Ratio: 800:1
• Display - View Angles: 85/85/85/85
• Display - Active Area: 344.16 x 193.59 mm
• System - Processor: NXP i.MX6 Dual Core 1.0 GHz
• System - Memory: 1 GB (Default); 2 GB (Optional)
• System - Storage: eMMC onboard 16 GB (Default); 32 GB (Optional)
• System - OS: Linux Ubuntu 18.04; Android 6.0; Debian 7.0; Linux 4.1.15 QT 5.5 (optional)
• Mechanical - Dimensions: 388 x 260 x 62.5 mm
• Mechanical - Cut out: 371.2 x 223.3 mm
• Mechanical - Weight: 2.7 kg
• Mechanical - Mounting: Panel mount; VESA mount
• Mechanical - Enclosure: Metal housing
• Environmental - Operating Humidity: 10% to 90% RH, non-condensing
• Environmental - Operating Temperature: 0°C to 50°C
• Environmental - Storage Temperature: -10°C to 60°C
• Environmental - IP rating: Front IP65
• IO Ports - USB: 1 x Console Port (Mini USB); 1 x USB OTG; 1 x USB2.0 (Type-A)
• IO Ports - Serial: 1 x RS232/422/485 (Default RS232)
• IO Ports - LAN: 1 x LAN RJ45 with PoE (PD, 802.3at)
• IO Ports - Video: 1 x Micro HDMI (Optional)
• IO Ports - SD Card Slot: 1 x Micro SD card slot
• IO Ports - Expansion: 1 x mPCIe slot (for Wi‑Fi module)
• IO Ports - CANBUS: 1 x CANBUS (D-sub9)
• Power - Input: 1 x 12V DC, 2-pin terminal block
• Power - Rating / Adapter: 12V DC / 12V 50W adapter
• Accessories: 100~240V AC to DC adapter; power cord; VESA screws; mounting clips; driver CD & manual
