Multitouch screen panel PC R15FA3S-EHC3

PCAP capacitive touch screen15"1024 x 768

Overview

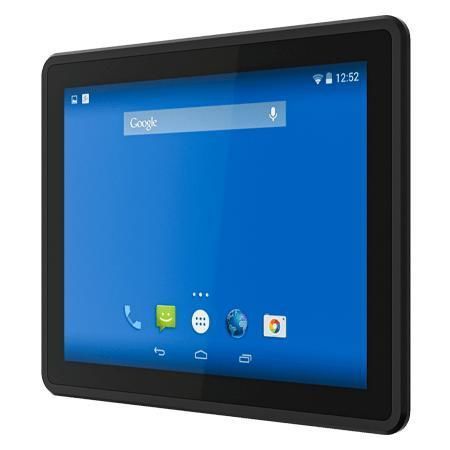

Winmate R15FA3S-EHC3 is a 15-inch HMI panel PC based on the NXP i.MX6 E Series, engineered for machine control, factory automation and operator interfaces in industrial environments. The unit features a projected capacitive multi-touch display, fanless ARM computing, front IP65 protection and optional Power over Ethernet (PoE) for simplified cabling and centralized power management.

Key features

• 15-inch 1024 x 768 display with Projected Capacitive Multi-Touch (P-CAP)
• NXP i.MX6 Dual Core 1.0 GHz processor
• Fanless design for low power and silent operation
• Power over Ethernet (PoE) support (PD, 802.3at)
• Front panel protection IP65 (water and dust resistant)
• I/O: USB (Console/Micro/Type-A), RS232/422/485, Micro SD, RJ45 with PoE, optional Micro HDMI

Product highlights

• True-flat front for easy cleaning and hygienic maintenance in production areas
• PoE simplifies installation by combining data and power on a single cable, useful for distributed HMI deployments
• ARM-based processing provides efficient compute performance with low energy consumption for embedded applications
• P-Cap touchscreen supports multi-touch input and offers a scratch-resistant glass cover
• Panel-mount clips and VESA options enable straightforward installation in control cabinets or operator stations

Certifications

• CE, FCC

Technical specifications

• Display
  • Size: 15.0 inches
  • Touch / Glass: Projected Capacitive Multi Touch Screen
  • Resolution: 1024 x 768
  • Brightness: 300 nits
  • Contrast Ratio: 2000:1
  • Viewing Angles: 88/88/88/88
  • Active Area: 304.1 x 228.1 mm
• System
  • Processor: NXP i.MX6 Dual Core, 1.0 GHz
  • Memory: 1 GB (default); 2 GB (optional)
  • Storage: eMMC 16 GB (default); 32 GB eMMC (optional)
  • OS (optional): Ubuntu 18.04, Android 6.0, Debian 7.0, Linux 4.1.15 with Qt 5.5
  • WLAN / Bluetooth: optional via mPCIe Wi‑Fi module
• Mechanical
  • Dimensions: 353 x 277 x 42 mm
  • Cut out: 336 x 266 mm
  • Weight: 3.0 kg
  • Mounting: Panel mount; VESA mount
  • Enclosure: Metal front bezel with plastic back cover
  • Cooling: Fanless
• Environment
  • Operating humidity: 10% to 90% RH, non-condensing
  • Operating temperature: 0°C to 50°C
  • Storage temperature: -10°C to 60°C
  • IP rating: Front IP65
• I/O ports
  • USB: 1 x Console Port (Mini USB), 1 x USB OTG, 1 x USB 2.0 (Type-A)
  • Serial: 1 x RS232/422/485 (default RS232)
  • LAN: 1 x RJ45 with PoE (PD, 802.3at)
  • Video: 1 x Micro HDMI (optional)
  • SD Card: 1 x Micro SD slot
  • Expansion: 1 x mPCIe slot (half-size Wi‑Fi module)
  • CANBUS: 1 x CANBUS (D-sub9)
  • Power input: 1 x 12V DC, 2-pin terminal block
• Accessories & power
  • Adapter: 100 ~ 240V AC to 12V DC (12V 50W recommended)
  • Power cord, VESA screws, mounting clips, driver CD & manual (depending on configuration)
