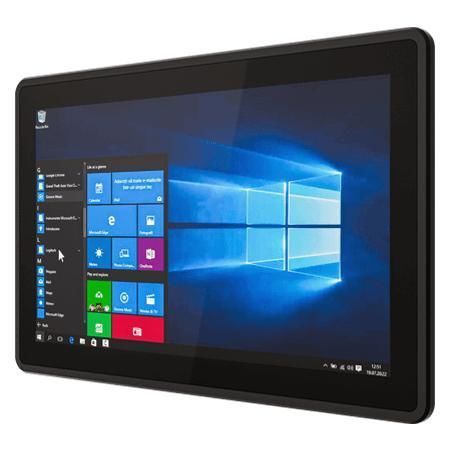

Multitouch screen panel PC W15IE3S-EHA4

PCAP capacitive touch screen15.6"1920 x 1080

Overview
Winmate W15IE3S-EHA4 is a 15.6" E Series HMI Panel PC powered by Intel® Celeron® N6211, designed for machine control, factory automation and operator HMI applications. It features a Full HD 1920x1080 projected capacitive multi-touch display, fanless design, low power consumption and industrial-grade protections (Front IP65).

Key Features

• 15.6” 1920 x 1080 resolution with PCAP touchscreen
• Intel® Celeron® N6211 Processor (up to 3.0 GHz)
• Front IP65 water and dust proof
• Dual Gigabit / 2.5G Ethernet
• Fanless cooling system and ultra-low power consumption

Product Highlights
True Flat (Easy-to-clean)
True flat front surface provides an elegant look and easy maintenance without clogged dust on edges.

Power over Ethernet (PoE)
Supports PoE to reduce cabling and allow data and power over a single cable, simplifying installation for access control and automation systems.

High-Performance CPU Designed for Embedded Systems
Uses Intel® processors for a balance of computing performance and energy efficiency tailored to industrial embedded applications.

P-Cap Touch (Resistant to scratches)
Projected capacitive glass cover lens supports multi-touch and scratch resistance for reliable operation and enhanced user experience.

Mounting clips (Quick installation)
Panel mounting clips enable quick installation without drilling, saving installation time and preserving fixture aesthetics.

Certifications

• CE
• FCC

Caractéristiques / Spécifications techniques

• Display — Size: 15.6 inches
• Display — Touch / Glass: Projected Capacitive Multi Touch Screen
• Display — Resolution: 1920 x 1080
• Display — Panel Brightness: 400 nits
• Display — Contrast Ratio: 800:1
• Display — View Angles: 85,85,85,85
• Display — Active Area: 344.16 x 193.59 mm
• System — Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• System — Memory: 4GB (Default); 8GB (Optional); 16GB (Optional)
• System — Storage: 128GB SSD (Default); optional 256GB, 512GB, 1TB, 2TB
• System — Ethernet controller: 2 x Intel® Ethernet Controller
• System — Security: TPM 2.0
• System — Operating System: Windows 11 IoT Enterprise (64 bit) (Optional); Windows 11 Pro 64 bit (Optional); Windows 10 IoT Enterprise (64 bit) (Optional); Linux Ubuntu 22.04 (Optional)
• Mechanical — Dimension: 402 x 251.3 x 63 mm
• Mechanical — Cut out: 368.2 x 227.3 mm
• Mechanical — Weight: 4.3 kg
• Mechanical — Mounting: Panel mount (Default); VESA mount (Optional)
• Mechanical — Enclosure: Metal housing
• Mechanical — Cooling System: Fanless design
• Environment — Operating Humidity: 10% to 90% RH, non-condensing
• Environment — Operating Temperature: 0°C to 50°C
• Environment — Storage Temperature: -10°C to 60°C
• Environment — IP rating: Front IP65
• IO Ports — USB Port: 2 x USB3.2 Gen2x1 (Type-A)
• IO Ports — Serial Port: 1 x RS232/422/485 (Default RS232)
• IO Ports — LAN: 2 x 2.5 Giga LAN RJ45 Connector
• IO Ports — Video: 1 x HDMI 2.0 (Optional)
• IO Ports — Expansion Port: 1 x M.2 2230 E-Key slot (for Wi‑Fi module)
• IO Ports — Power Input: 1 x 12V DC, 2.5φ DC jack
• Accessory — 100~240V AC to DC Adapter; Power Cord; VESA screws; Mounting clips
• Power — Power Rating: 12V DC; Adapter: 12V 50W
