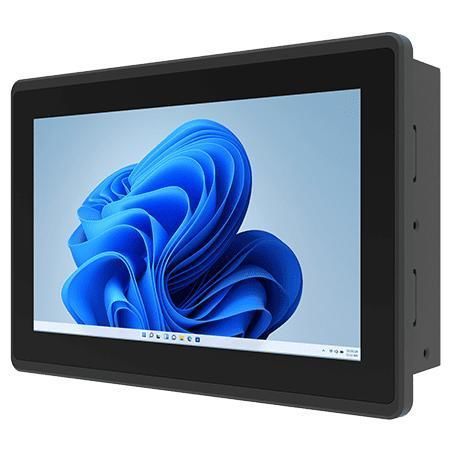

Multitouch screen panel PC W07IAN3S-EHT1

PCAP capacitive touch screen7"1024 x 600

Overview
Winmate W07IAN3S-EHT1 is a 7.0-inch E Series HMI Panel PC for machine control, factory automation and operator interfaces. It is powered by Intel® Processor N150 (6M Cache, up to 3.60 GHz) and combines a fanless design, front IP65 protection, PCAP multi-touch and dual Intel 2.5 Gigabit Ethernet for industrial connectivity and integration.

Key features

• 7.0-inch 1024 x 600 with Projected Capacitive Multi-Touch (PCAP)
• Intel® Processor N150, 6M Cache, up to 3.60 GHz
• Front IP65 water and dust protection
• Dual Intel® 2.5 Gigabit Ethernet controllers
• Fanless cooling and ultra-low power consumption

Product description
The W07IAN3S-EHT1 is designed for OEM integration, control panels and edge HMI applications. Its fanless architecture reduces maintenance and ingress of contaminants, while front IP65 and PCAP touch support operation in industrial environments. Dual 2.5GbE ports provide higher bandwidth and network redundancy for automation and remote monitoring.

Display

• Size: 7.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Resolution: 1024 x 600
• Panel Brightness: 320 nits
• Contrast Ratio: 1000:1
• View Angles: 75, 75, 75, 70
• Active Area: 153.6 x 90 mm

System specification

• Processor: Intel® Processor N150, 6M Cache, up to 3.60 GHz
• Memory: 8 GB (default), up to 16 GB (optional)
• Storage: 128 GB SSD (default); optional 256 GB, 512 GB, 1 TB, 2 TB, 4 TB
• Ethernet controller: 2 x Intel® 2.5 Gigabit Ethernet Controller
• Security: TPM 2.0
• Operating System (optional): Windows 11 IoT Enterprise (64-bit), Windows 11 Pro 64-bit, Linux Ubuntu 24.04 (Ubuntu: no Wake on Touch)
• WLAN / Bluetooth: optional

Mechanical

• Dimension: 185 x 128 x 56 mm
• Cut out: 174.9 x 117.7 mm
• Weight: 2.4 kg
• Mounting: Panel mount (default); VESA mount (optional)
• Enclosure: Metal housing & ABS+PC
• Cooling System: Fanless design

Environment

• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP rating: Front IP65

Certification

• CE
• FCC

IO Ports

• USB: 2 x USB 3.2 Gen1 Type-A; 1 x USB 3.2 Gen2 Type-C (supports DP Alt. mode)
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: 1 x HDMI 2.0 (optional)
• Expansion: 1 x M.2 2230 E-Key slot (for Wi‑Fi module)
• Power input: 1 x 12V DC, 2.5φ DC jack

Accessory

• 100~240V AC to DC adapter
• Power cord
• VESA screws
• Mounting clips

Power

• Power rating: 12V DC
• Adapter: 12V 50W

Technical specifications

• Model: W07IAN3S-EHT1
• Brand: Winmate
• Display size: 7.0" (1024 x 600)
• Touch technology: PCAP multi-touch
• Processor: Intel® N150 (6M Cache, up to 3.60 GHz)
• Memory: 8 GB default, up to 16 GB
• Storage: 128 GB SSD default; options up to 4 TB
• Ethernet: Dual Intel® 2.5 Gigabit
• USB ports: 2 x USB-A 3.2 Gen1, 1 x USB-C 3.2 Gen2 (DP Alt Mode)
• Serial port: RS232/422/485
• Video option: HDMI 2.0 (optional)
• Expansion: M.2 2230 E-Key for Wi‑Fi
• Security: TPM 2.0
• Mounting: Panel mount (default), VESA optional
• Front protection: IP65
• Operating temp: 0°C to 50°C
• Storage temp: -10°C to 60°C
• Dimensions: 185 x 128 x 56 mm
• Weight: 2.4 kg
• Certifications: CE, FCC
