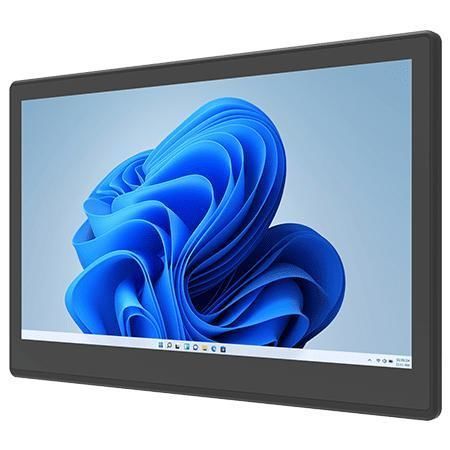

Multitouch screen panel PC W14IAN3S-EHA1

PCAP capacitive touch screen14"1920 x 1080

Overview
The Winmate W14IAN3S-EHA1 is a 14" E Series HMI Panel PC designed for machine control, factory automation and operator HMI. Powered by Intel® Processor N150 (6M cache, up to 3.60 GHz), it delivers responsive performance for control systems, monitoring dashboards and automation applications. The fanless architecture and ultra-low power design reduce noise and dust ingress for extended industrial operation.

Key features

• 14" 1920 x 1080 display with Projected Capacitive MultiTouch (PCAP)
• Intel® Processor N150, 6M Cache, up to 3.60 GHz
• Front IP65 water and dust proof
• Dual Intel® 2.5 Gigabit Ethernet controllers (network redundancy/high-speed)
• Fanless cooling and ultra-low power consumption
• High brightness panel (700 nits) and wide viewing angles

Certifications

• CE
• FCC

Product highlights
Projected capacitive multi-touch screen, IP65-rated front panel, metal housing with ABS+PC elements, default panel-mount with optional VESA mount. Multiple storage and memory configurations available, TPM 2.0 security, optional WLAN/BT and support for Windows 11 variants or Ubuntu 24.04.

Technical specifications

• Model: W14IAN3S-EHA1
• Brand: Winmate
• Display: Projected Capacitive Multi Touch Screen
• Size: 14.0"
• Resolution: 1920 x 1080
• Panel Brightness: 700 nits
• Contrast Ratio: 1200:1
• Viewing Angles: 89/89/89/89
• Active Area: 309.312 x 173.988 mm
• Processor: Intel® Processor N150, 6M Cache, up to 3.60 GHz
• Memory: 8 GB (default); 16 GB (optional)
• Storage: 128 GB SSD (default); optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB
• Ethernet: 2 x Intel® 2.5 Gigabit Ethernet Controller
• Security: TPM 2.0
• Operating Systems (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Ubuntu 24.04 (no Wake on Touch)
• WLAN/BT: optional
• Dimensions: 340 x 220 x 62 mm
• Cut out: 318.6 x 198.6 mm
• Weight: 4.5 kg
• Mounting: Panel mount (default); VESA mount (optional)
• Enclosure: Metal housing & ABS+PC
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non‑condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP Rating: Front IP65
• USB Ports: 2 x USB 3.2 Gen2x1 (Type-A); 1 x USB 3.2 Gen2x1 Type-C (supports DP Alt Mode)
• Serial Port: 1 x RS232/422/485 (default RS232)
• LAN: 2 x 2.5 Giga LAN RJ45 connectors
• Video: 1 x HDMI 2.0b (optional), up to 4096 x 2160 @ 60 Hz
• Expansion: 1 x M.2 2230 E-Key slot (for Wi‑Fi module); 1 x M.2 2230 E-Key slot (for AI acceleration card, available only when NVMe SSD is not present)
• Power Input: 1 x 12V DC, 2.5φ DC jack
• Power Rating / Adapter: 12V DC; Adapter 12V 50W
• Accessories: AC 100~240V to DC adapter, power cord, VESA screws, mounting clips
