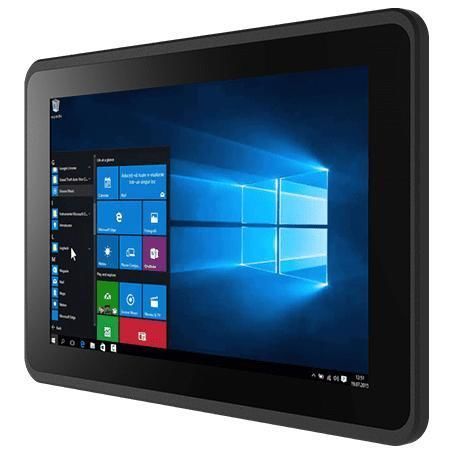

Multitouch screen panel PC W10IE3S-EHH2

PCAP capacitive touch screen10.1"1280 x 800

Overview Winmate W10IE3S-EHH2 is a 10.1-inch E Series HMI Panel PC powered by Intel® Celeron® N6211, designed for machine control, factory automation and operator HMI applications. It targets industrial buyers, OEMs and system integrators requiring rugged, low-power, fanless hardware with long lifecycle availability.

Key features

• 10.1-inch 1280 x 800 resolution display with Projected Capacitive (P-Cap) multi-touch
• Intel® Celeron® N6211 processor (1.5 MB cache, up to 3.0 GHz)
• Front IP65 water and dust protection
• Dual Ethernet: 2 x Intel® Ethernet Controller, 2 x 2.5 Giga LAN RJ45 connectors
• Fanless cooling design and ultra-low power consumption

Certifications

• Front IP65
• CE
• FCC

Product highlights

• True Flat front surface for easy cleaning and hygienic installations
• Power over Ethernet (PoE) support to combine data and power on one cable (optional)
• Energy-efficient Intel® processor optimized for embedded applications
• P-Cap touch with glass cover lens: scratch resistant, supports 4-point multi-touch
• Mounting clips for quick panel mounting without drilling

Packaging and included items Standard accessories include 100~240V AC to DC adapter (12V 50W), power cord, VESA screws and mounting clips.

Technical specifications

• Display — Size: 10.1 inches
• Display — Touch / Glass: Projected Capacitive Multi Touch Screen
• Display — Resolution: 1280 x 800
• Display — Panel Brightness: 350 nits
• Display — Contrast Ratio: 800:1
• Display — View Angles: 85, 85, 85, 85
• Display — Active Area: 216.96 x 135.6 mm
• System — Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• System — Memory: 4GB (Default); 8GB (Optional); 16GB (Optional)
• System — Storage: 128GB SSD (Default); 256GB / 512GB / 1TB / 2TB (Optional)
• System — Ethernet controller: 2 x Intel® Ethernet Controller
• System — Security: TPM 2.0
• System — Operating System: Windows 11 IoT Enterprise 64-bit (Optional); Windows 11 Pro 64-bit (Optional); Windows 10 IoT Enterprise 64-bit (Optional); Linux Ubuntu 22.04 (Optional)
• Mechanical — Dimension: 267 x 182 x 56.5 mm
• Mechanical — Cut out: 244 x 159 mm
• Mechanical — Weight: 1.5 kg
• Mechanical — Mounting: Panel mount (Default); VESA mount (Optional)
• Mechanical — Enclosure: Metal housing & ABS+PC
• Mechanical — Cooling System: Fanless design
• Environment — Operating Humidity: 10% to 90% RH, non-condensing
• Environment — Operating Temperature: 0°C to 50°C
• Environment — Storage Temperature: -10°C to 60°C
• Environment — IP rating: Front IP65
• Certification — CE, FCC
• IO Ports — USB Port: 2 x USB3.2 Gen2x1 (Type-A)
• IO Ports — Serial Port: 1 x RS232/422/485 (Default RS232)
• IO Ports — LAN: 2 x 2.5 Giga LAN RJ45 Connector
• IO Ports — Video: 1 x HDMI 2.0 (Optional)
• IO Ports — Expansion: 1 x M.2 2230 E-Key Slot (for Wi‑Fi module)
• Power — Power Input: 1 x 12V DC, 2.5φ DC jack
• Power — Power Rating / Adapter: 12V DC; Adapter: 12V 50W
• Accessories — Included: 100~240V AC to DC Adapter, Power Cord, VESA screws, Mounting clips
