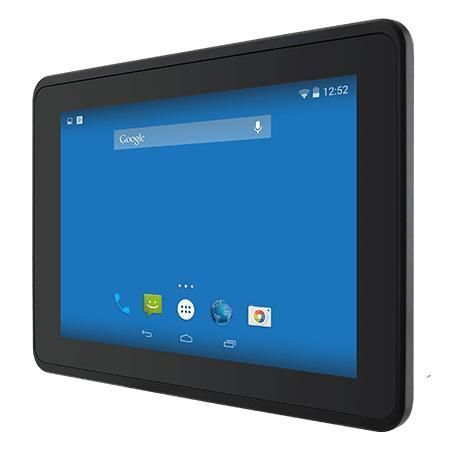

Multi-touch screen panel PC W10FA3S-EHH2

PCAP capacitive touch screen10.1"1280 x 800

Product Overview
The W10FA3S-EHH2 is a 10.1-inch NXP i.MX6 E Series HMI Panel PC designed for machine control, factory automation and operator HMI. It delivers fanless ARM-based computing, a projected capacitive multi-touch display, front IP65 protection and a range of industrial I/O for field integration.

Key Features

• 10.1-inch 1280 x 800 projected capacitive (P-CAP) multi-touch touchscreen
• NXP i.MX6 Dual Core processor (1.0 GHz)
• Fanless cooling design
• Front IP65 protection
• I/O: USB (Console/Mini, OTG, Type-A), RS232/422/485, CANBUS (D-sub9), Micro SD slot, Micro HDMI (optional), LAN with PoE (PD, 802.3at)

True Flat (Easy-to-clean)
True flat front reduces dust traps at edges for easier cleaning and a seamless industrial appearance.

Power over Ethernet
PoE support simplifies installation by combining power and data on a single cable, enabling centralized power management and reduced cabling in industrial setups.

Next generation computing power
The ARM-based platform provides efficient computing performance with low power consumption suitable for industrial IoT and embedded HMI applications.

P-Cap Touch (Resistant to scratches)
Glass cover lens improves scratch resistance and supports 4-point multi-touch for intuitive finger input.

Mounting clips (Quick installation)
Includes mounting clips for panel mounting to enable quick installation without drilling, preserving the panel appearance after removal.

Certifications

• Front IP65
• CE
• FCC

Technical specifications

• Model: W10FA3S-EHH2
• Manufacturer: Winmate
• Display size: 10.1 inches
• Touch / Glass: Projected Capacitive Multi Touch (P-Cap), 4-point multi-touch
• Resolution: 1280 x 800
• Panel brightness: 350 nits (1000 nits optional)
• Contrast ratio: 800:1
• View angles: 85/85/85/85
• Active area: 216.96 x 135.6 mm
• Processor: NXP i.MX6 Dual Core, 1.0 GHz
• Memory: 1 GB (default), 2 GB (optional)
• Storage: eMMC onboard 16 GB (default), 32 GB (optional)
• Operating system (optional): Linux Ubuntu 18.04; Android 6.0; Debian 7.0; Linux 4.1.15 QT 5.5
• WLAN / Bluetooth: optional (mPCIe module)
• Dimensions: 267 x 182 x 56.5 mm
• Cut out: 244 x 159 mm
• Weight: 1.5 kg
• Mounting: Panel mount; VESA mount
• Enclosure: Metal housing
• Cooling system: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• IP rating: Front IP65
• USB ports: 1 x Console Port (Mini USB); 1 x USB OTG; 1 x USB 2.0 (Type-A)
• Serial port: 1 x RS232/422/485 (default RS232)
• LAN: 1 x RJ45 with PoE (PD, 802.3at)
• Video: 1 x Micro HDMI (optional)
• SD card slot: 1 x Micro SD
• Expansion: 1 x mPCIe slot (half-size for Wi‑Fi module)
• CANBUS: 1 x CANBUS, D-sub9
• Power input: 1 x 12V DC, 2-pin terminal block
• Accessories: 100~240V AC to DC adapter (12V 50W); power cord; VESA screws; mounting clips; driver CD & manual
• Power rating / adapter: 12V DC; adapter 12V 50W
