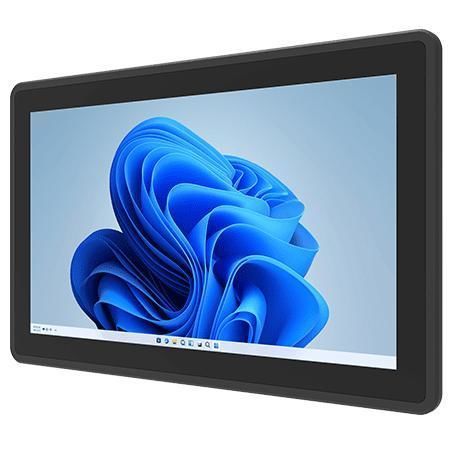

Multitouch screen panel PC W15IAN3S-EHA4

PCAP capacitive touch screen15.6"1920 x 1080

Summary
Winmate W15IAN3S-EHA4 is a 15.6-inch E Series HMI Panel PC with Intel® Processor N150, designed for machine control, factory automation and operator HMI in industrial and embedded environments. It features a front IP65 rating, 1920 x 1080 PCAP multi-touch display, fanless design and dual 2.5 Gigabit Ethernet for reliable connectivity.

Key Features

• 15.6-inch 1920 x 1080 with Projected Capacitive MultiTouch (PCAP)
• Intel® Processor N150, 6M Cache, up to 3.60 GHz
• Front IP65 — water and dust protection
• Dual 2.5 Gigabit Ethernet controllers for high-speed and redundant networking
• Fanless cooling and low power consumption for continuous industrial operation

Overview

• Performance: Intel® N150 delivers responsive operation for control systems, monitoring dashboards and automation applications.
• Reliability: Fanless architecture reduces maintenance points and dust ingress risk, supporting continuous use in industrial settings.
• Rugged interface: IP65 front panel combined with PCAP touchscreen for accurate multi-touch control in harsh environments.
• Connectivity: Dual 2.5GbE provides high throughput, network redundancy and improved remote device management.

Certifications

• CE
• FCC

Detailed Specifications
Display

• Size: 15.6 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Resolution: 1920 x 1080
• Panel Brightness: 400 nits
• Contrast Ratio: 800:1
• View Angles: 85/85/85/85
• Active Area: 344.16 x 193.59 mm

System Specification

• Processor: Intel® Processor N150, 6M Cache, up to 3.60 GHz
• Memory: 8 GB (default); optional 16 GB
• Storage: 128 GB SSD (default); optional 256 GB, 512 GB, 1 TB, 2 TB, 4 TB
• Ethernet controller: 2 x Intel® 2.5 Gigabit Ethernet Controller
• Security: TPM 2.0
• Operating System: Windows 11 IoT Enterprise 64-bit (optional); Windows 11 Pro 64-bit (optional); Linux Ubuntu 24.04 (optional, Wake on Touch not supported)
• WLAN / BT: optional via M.2 2230 E-Key slot

Mechanical

• Dimensions: 402 x 251.3 x 63 mm
• Cut out: 368.2 x 227.3 mm
• Weight: 4.3 kg
• Mounting: Panel mount (default); VESA mount (optional)
• Enclosure: Metal housing
• Cooling System: Fanless design

Environment

• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP rating: Front IP65

IO Ports

• USB: 2 x USB 3.2 Gen1 Type-A; 1 x USB 3.2 Gen2 Type-C (supports DP Alt. mode)
• Serial Port: 1 x RS232/422/485 (default RS232)
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: 1 x HDMI 2.0 (optional)
• Expansion: 1 x M.2 2230 E-Key slot (for Wi‑Fi module)
• Power Input: 1 x 12V DC, 2.5φ DC jack

Accessory

• 100~240V AC to DC adapter
• Power cord
• VESA screws
• Mounting clips

Power

• Power Rating: 12V DC
• Adapter: 12V 50W

Technical specifications

• Model: W15IAN3S-EHA4
• Brand: Winmate
• Display: 15.6-inch, 1920 x 1080, PCAP multi-touch, 400 nits
• Processor: Intel® N150, 6M Cache, up to 3.60 GHz
• Memory: 8 GB (default), up to 16 GB optional
• Storage: 128 GB SSD (default), options up to 4 TB
• LAN: Dual 2.5 Gigabit Ethernet
• Front protection: IP65
• Mounting: Panel mount (default), VESA optional
• Dimensions / Weight: 402 x 251.3 x 63 mm / 4.3 kg
• Operating temperature: 0°C to 50°C
• Security: TPM 2.0
• Power input: 12V DC (adapter 12V 50W)
• Certifications: CE, FCC
