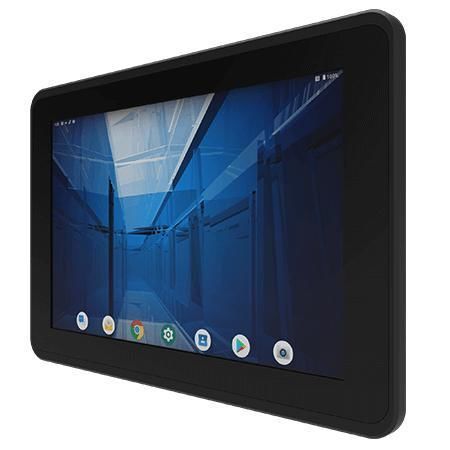

Multi-touch screen panel PC W10IM3S-EHH2

PCAP capacitive touch screen10.1"1280 x 800

Overview
Winmate W10IM3S-EHH2 is a 10.1-inch E Series HMI Panel PC powered by an ARM A53 Quad Core 2.0 GHz processor. It is designed for machine control, factory automation and operator HMI applications, featuring a fanless design, low power consumption, projected capacitive multi-touch and front IP65 protection. Multiple OS options are available including Android and Linux.

Key Features

• 10.1" 1280 x 800 display with Projected Capacitive Multi-Touch (PCAP)
• ARM A53 Quad Core 2.0 GHz CPU
• Fanless cooling and ultra-low power consumption
• Front IP65 water- and dust-proof
• Android 11 (upgradeable) with optional Linux distributions

Certifications

• CE
• FCC

Product Highlights

• True Flat front for easy cleaning and reduced dust ingress
• ARM compute platform for high efficiency and low power operation
• P-Cap touchscreen with scratch-resistant glass and 4-point multi-touch
• Panel mounting clips for quick installation without drilling

IO & Expansion
Includes 2 x USB 2.0 Type-A, 1 x Micro USB 2.0 OTG, 1 x RS232/422/485 (default RS232), 1 x Gigabit LAN (10/100/1000) with optional PoE (PD, 802.3at), optional Micro HDMI output and Micro SD slot (up to 32 GB).

Accessories (included)

• 100~240V AC to DC adapter
• Power cord
• VESA screws
• Mounting clips

Technical Specifications

• Display: 10.1 inches, 1280 x 800, Active area 216.96 x 135.6 mm, Brightness 350 nits (1000 nits optional), Contrast 800:1, Viewing angles 85/85/85/85
• Processor: ARM A53 (Quad Core 2.0 GHz)
• Memory: 4 GB LPDDR4
• Storage: Onboard eMMC 32 GB
• Operating System: Android 11 (default, upgradable to Android 13); optional Linux Yocto 5.15.47 with Qt 5.15; optional Ubuntu Server 22.04
• Dimensions (W x H x D): 267 x 182 x 56.5 mm; Cut out: 244 x 159 mm; Weight: 1.5 kg
• Mounting: Panel mount; VESA mount
• Enclosure: Metal front bezel with plastic back cover
• Cooling: Fanless design
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temperature 0°C to 50°C; Storage temperature -20°C to 60°C
• Reliability: Shock MIL-STD-810H Method 516.8 Procedure I; Vibration MIL-STD-810H Method 514.8 Procedure I
• IP Rating: Front IP65
• Certifications: CE, FCC
• Power: 12 V DC with terminal block; Adapter: 12 V 50 W (9~36 V optional)
