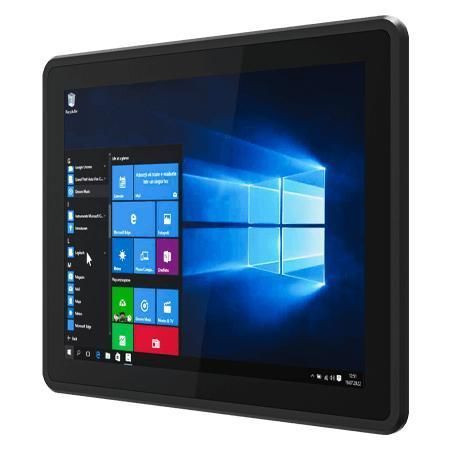

Multitouch screen panel PC R15IE3S-EHC3
PCAP capacitive touch screen15"1024 x 768

Multitouch screen panel PC - R15IE3S-EHC3 - Winmate, Inc. - PCAP capacitive touch screen / 15" / 1024 x 768
Multitouch screen panel PC - R15IE3S-EHC3 - Winmate, Inc. - PCAP capacitive touch screen / 15" / 1024 x 768
Multitouch screen panel PC - R15IE3S-EHC3 - Winmate, Inc. - PCAP capacitive touch screen / 15" / 1024 x 768 - image - 2
Multitouch screen panel PC - R15IE3S-EHC3 - Winmate, Inc. - PCAP capacitive touch screen / 15" / 1024 x 768 - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
PCAP capacitive touch screen, multitouch screen
Display size
15"
Resolution
1024 x 768
Processor
Intel® Celeron® N6211
Construction
fanless, in metal housing, plastic housing
Mounting
VESA mounting
Protection level
IP65
Other characteristics
HMI, Ethernet, RJ45, PoE
Memory size

Min.: 4 GB

Max.: 16 GB

Description

Overview
Winmate R15IE3S-EHC3 is a 15-inch E Series HMI Panel PC powered by Intel® Celeron® N6211, designed for machine control, factory automation and operator HMI. It features a true-flat front for easy cleaning, projected capacitive multi-touch (PCAP), fanless cooling for low power consumption, dual 2.5 Giga Ethernet and long lifecycle availability for industrial deployments.

Key Features
  • 15.0" 1024 x 768 display with projected capacitive multi-touch
  • Intel® Celeron® N6211 processor (up to 3.0 GHz)
  • Front IP65 water- and dust-proof design
  • Dual 2.5 Giga Ethernet (Intel® controllers) with PoE support
  • Fanless cooling for reduced maintenance and ultra-low power use

Product Highlights / Details
  • True-flat front panel for hygienic cleaning and minimal dust trapping at edges
  • Power over Ethernet (PoE) support to simplify cabling and centralize power
  • Configurable memory and storage: default 4GB / 128GB SSD; options up to 16GB RAM and 2TB SSD
  • PCAP glass supporting 4-point multi-touch and scratch resistance for operator use
  • Panel-mount clips for quick installation and easy removal without drilling; optional VESA mount

Certifications
  • CE
  • FCC

Technical specifications
  • Display: 15.0 inches; Resolution: 1024 x 768; Touch / Glass: Projected Capacitive Multi Touch Screen; Brightness: 300 nits; Contrast Ratio: 2000:1; View Angles: 88/88/88/88; Active Area: 304.1 x 228.1 mm
  • System: Processor: Intel® Celeron® N6211 (up to 3.0 GHz); Memory: 4GB default (optional 8GB / 16GB); Storage: 128GB SSD default (optional 256GB / 512GB / 1TB / 2TB); Security: TPM 2.0
  • Networking & IO: 2 x 2.5 Giga LAN RJ45 (Intel®); 2 x USB 3.2 Gen2 Type-A; 1 x RS232/422/485 (default RS232); 1 x HDMI 2.0 (optional); 1 x M.2 2230 E-Key (Wi‑Fi)
  • Power & Mounting: Power input 12V DC (2.5φ jack); AC adapter and power cord included; Panel mount default, VESA optional; Mounting clips included
  • Mechanical: Dimensions 367 x 291 x 65.8 mm; Cut-out 342 x 261 mm; Weight 5.3 kg; Enclosure: Metal housing & ABS+PC; Cooling: Fanless
  • Environment: Operating humidity 10%–90% RH non-condensing; Operating temperature 0°C to 50°C; Storage temperature -10°C to 60°C; Front IP rating IP65
