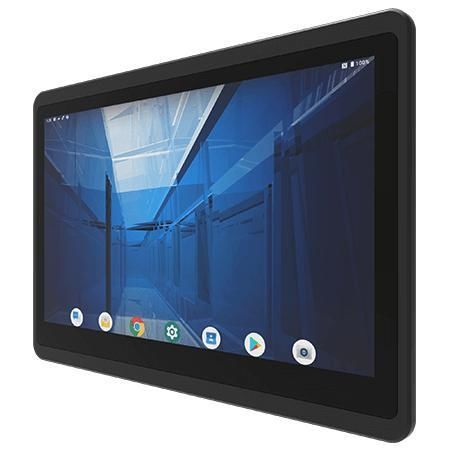

Multitouch screen panel PC W15IM3S-EHA4

PCAP capacitive touch screen15.6"1920 x 1080

Overview
Winmate W15IM3S-EHA4 is a 15.6-inch ARM A53 HMI Panel PC designed for machine control, factory automation and operator HMI. It features a True Flat easy-to-clean front, next-generation ARM computing power with low power consumption, projected capacitive multi-touch (P-CAP) glass, front IP65 protection and a fanless design for reliable operation in industrial environments.

Key features

• 15.6” 1920 x 1080 resolution with Projected Capacitive Multi-Touch (P-CAP)
• ARM A53 Quad Core 2.0 GHz processor
• Fanless cooling system and ultra-low power consumption
• Front IP65 water and dust protection
• Android 11 (default) with optional support for Linux (Yocto/Ubuntu)

Highlights / Product benefits

• True Flat bezel for easy cleaning and reduced dust accumulation
• Efficient ARM computing for industrial IoT and HMI tasks
• P-Cap touch panel with scratch-resistant glass and multi-touch support for intuitive operation
• Quick panel mounting with included mounting clips for fast installation and neat integration

Certifications
CE, FCC

Technical specifications

• Display Size: 15.6 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1920 x 1080
• Panel Brightness: 400.0 nits
• Contrast Ratio: 800:1
• View Angles: 85,85,85,85
• Active Area: 344.16 x 193.59 mm
• Processor: ARM A53 (Quad Core 2.0 GHz)
• Memory: 4 GB LPDDR4
• Storage: eMMC onboard 32 GB
• Operating System: Android 11 (Upgradeable to Android 13) (Default); Linux Yocto 5.15.47 with QT 5.15 (Optional); Linux Ubuntu Server 22.04 (Optional)
• Dimension: 402 x 251.3 x 63 mm
• Cut out: 369 x 228 mm
• Weight: 2.8 kg
• Mounting: Panel Mount (mounting clips included)
• Enclosure: Metal front bezel with plastic back cover
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Shock: MIL-STD-810H Method 516.8 Procedure I
• Vibration: MIL-STD-810H Method 514.8 Procedure I
• IP rating: Front IP65
• Certification: CE, FCC
• USB Port: 2 x USB 2.0 Type A; 1 x Micro USB 2.0 OTG
• Serial Port: 1 x RS232/422/485 (Default RS232)
• LAN: 1 x LAN 10/100/1000 Mbps (Default); PoE (PD, 802.3at) optional
• Video: 1 x Micro HDMI output (Optional)
• SD Card Slot: 1 x Micro SD card slot (Max 32 GB)
• Power Rating: 12V DC with Terminal Block
• Adapter: 12V 50W (included)
• Accessories: 100~240V AC to DC Adapter; Power Cord; VESA screws; Mounting clips
