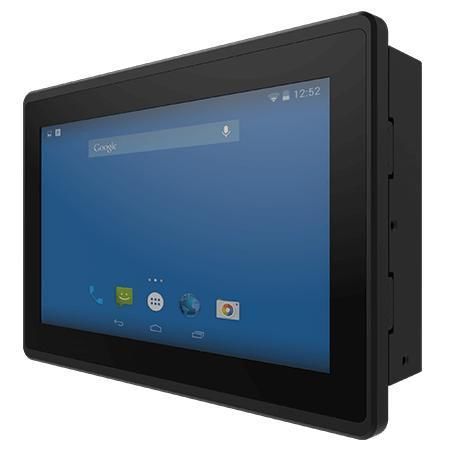

Multitouch screen panel PC W07FA3S-EHT1

PCAP capacitive touch screen7"1024 x 600

Overview
Winmate W07FA3S-EHT1 is a 7" HMI Panel PC based on the NXP i.MX6 E-Series, engineered for machine control, factory automation and operator interfaces. It provides fanless operation, a metal housing, a true-flat front with IP65 protection, and optional Power over Ethernet (PoE) to simplify installation and cabling.

Key features

• 7" 1024 x 600 projected capacitive (PCAP) multi-touch display
• NXP i.MX6 Dual Core processor, 1.0 GHz
• Fanless cooling for maintenance-free operation
• Front panel protection IP65
• Industrial I/O: USB (OTG/Type-A/console), RS232/422/485, CANbus, LAN with PoE (PD, 802.3at)

Product details

• True-flat front panel for easy cleaning and reduced dust accumulation
• Optional Power over Ethernet (PoE) combines data and power on a single cable for simplified deployments
• ARM SoC platform delivering balanced performance and low power consumption for industrial IoT and embedded HMI
• PCAP touch supporting 4-point multi-touch with scratch-resistant glass cover lens
• Panel-mount clips for quick installation without drilling; VESA mount option available

Certifications

• CE
• FCC
• Front IP65

Technical specifications

• Display: 7.0 inches, 1024 x 600, Panel Brightness 320 nits, Contrast Ratio 1000:1, View Angles 75/75/75/70, Active Area 153.6 x 90 mm
• Touch / Glass: Projected Capacitive Multi Touch Screen, scratch-resistant glass
• Processor: NXP i.MX6 Dual Core, 1.0 GHz
• Memory: 1 GB (default), 2 GB (optional)
• Storage: eMMC onboard 16 GB (default), 32 GB (optional)
• Operating System (optional): Linux Ubuntu 18.04, Android 6.0, Debian 7.0, Linux 4.1.15 QT 5.5
• Wireless: WLAN/Bluetooth optional (mPCIe half-size slot)
• Mechanical: Dimension 185 x 128 x 56 mm; Cut-out 174.9 x 117.7 mm; Weight 0.9 kg; Metal housing
• Mounting: Panel mount (clips) and VESA mount
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temperature 0°C–50°C; Storage temperature -10°C–60°C; Front IP65
• IO Ports: 1 x Console (Mini USB), 1 x USB OTG, 1 x USB 2.0 Type-A, 1 x RS232/422/485 (default RS232), 1 x CANbus (D-sub9), 1 x LAN RJ45 with PoE (PD, 802.3at), 1 x Micro SD slot, 1 x Micro HDMI (optional)
• Expansion: 1 x mPCIe slot (for Wi‑Fi module, half-size)
• Power: Input 12V DC via 2-pin terminal block; Adapter 12V 50W (included/optional)
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips, driver CD & manual
