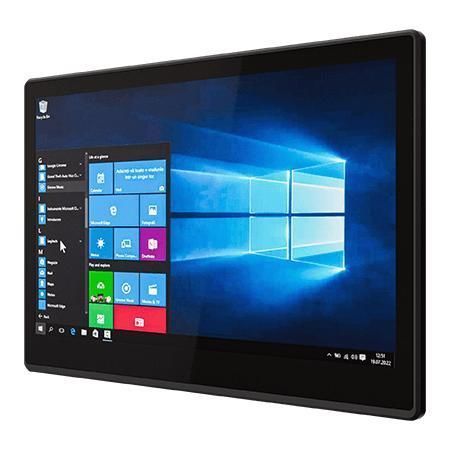

Multitouch screen panel PC W14IE3S-EHA1

PCAP capacitive touch screen14"1920 x 1080

Overview
Winmate W14IE3S-EHA1 is a 14-inch HMI Panel PC designed for machine control, factory automation and operator HMI applications. It features a 14.0" 1920 x 1080 FHD projected capacitive multi-touch display, front IP65 protection, fanless cooling and industrial I/O support. Processor references on product materials include Intel® Celeron® N6211 (E Series) and system specifications list Intel® Processor N100 (default) and N150 (optional). The unit is intended for rugged, embedded and mission‑critical environments where stable hardware integration and long lifecycle availability are required.

Key Features

• 14" 1920 x 1080 resolution with Projected Capacitive MultiTouch (PCAP)
• Intel® Celeron® N6211 (E Series) — product marking; system options include Intel® Processor N100 (default) and N150 (optional)
• Dual 2.5 Gigabit Ethernet controllers
• Fanless cooling and ultra-low power consumption
• Front panel IP65 for dust and water resistance

Design & Usability Highlights

• True flat front design for easy cleaning and hygienic surface maintenance
• Power over Ethernet (PoE) support for combined data and power over a single cable
• P-CAP touch with durable glass cover lens and 4-point multi-touch support
• Quick panel installation using mounting clips; optional VESA mount available

Certifications

• CE
• FCC

Technical specifications

• Display - Touch / Glass: Projected Capacitive Multi Touch Screen
• Display - Size: 14.0 inches
• Display - Resolution: 1920 x 1080
• Display - Panel Brightness: 700 nits
• Display - Contrast Ratio: 1200:1
• Display - View Angles: 89, 89, 89, 89
• Display - Active Area: 309.312 x 173.988 mm
• System - Processor: Intel® Processor N100 6M Cache, up to 3.40 GHz (Default); Intel® Processor N150 6M Cache, up to 3.60 GHz (Optional); product marking may state Intel® Celeron® N6211 (E Series)
• System - Memory: 4GB (Default); 8GB, 16GB (Optional)
• System - Storage: 128GB SSD (Default); optional 256GB, 512GB, 1TB, 2TB, 4TB
• System - Ethernet controller: 2 x Intel® 2.5 Gigabit Ethernet Controller
• System - Security: TPM 2.0
• System - Operating System: Windows 11 IoT Enterprise (64 bit) (Optional); Windows 11 Pro 64 bit (Optional); Linux Ubuntu 24.04 (Optional, does not support Wake on Touch)
• System - WLAN / Bluetooth: Optional support (M.2 2230 E-Key slot for Wi‑Fi)
• Mechanical - Dimension: 340 x 220 x 62 mm
• Mechanical - Cut out: 318.6 x 198.6 mm
• Mechanical - Weight: 4.5 kg
• Mechanical - Mounting: Panel mount (Default); VESA mount (Optional)
• Mechanical - Enclosure: Metal housing & ABS+PC
• Mechanical - Cooling System: Fanless design
• Environment - Operating Humidity: 10% to 90% RH, non-condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -10°C to 60°C
• Environment - IP rating: Front IP65
• IO Ports - USB Port: 2 x USB3.2 Gen1x1 (Type-A); 1 x USB3.2 Gen2x1 Type-C, supports DP Alt. mode
• IO Ports - Serial Port: 1 x RS232/422/485 (Default RS232)
• IO Ports - LAN: 2 x 2.5 Giga LAN RJ45 connectors
• IO Ports - Video: 1 x HDMI 2.0 (Optional)
• IO Ports - Expansion Port: 1 x M.2 2230 E-Key slot (for Wi‑Fi module)
• IO Ports - Power Input: 1 x 12V DC, 2.5φ DC jack
• Accessory: 100~240V AC to DC adapter; power cord; VESA screws; mounting clips
• Power - Power Rating: 12V DC
• Power - Adapter: 12V 50W
