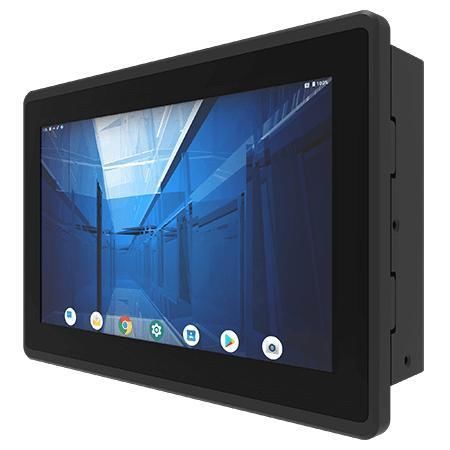

Multitouch screen panel PC W07IM3S-EHT1

PCAP capacitive touch screen7"1024 x 600

Overview
Winmate W07IM3S-EHT1 is a 7.0-inch E Series HMI Panel PC based on an ARM A53 quad-core 2.0 GHz processor, designed for machine control, factory automation and operator HMI applications that require low power consumption, front IP65 protection and long lifecycle availability.

Key features

• 7.0-inch 1024 x 600 display with Projected Capacitive Multi-Touch (P-CAP)
• ARM A53 Quad Core 2.0 GHz processor
• Fanless design for low power consumption and reliable field operation
• Front IP65 water and dust protection
• Android 11 (default); supports Android or Linux operating systems

Product highlights

• True flat glass front for easy cleaning and hygienic use
• P-Cap touch with glass cover lens providing scratch resistance and 4-point multi-touch
• ARM computing power optimized for industrial IoT and HMI tasks
• Quick panel mounting with mounting clips (no drilling required) and optional VESA mounting

Certifications
CE, FCC

Applications
Machine control, factory automation, operator HMI, embedded industrial deployments and other mission-critical environments requiring rugged, low-power HMI solutions.

Specifications

• Model: W07IM3S-EHT1
• Display Size: 7.0 inches
• Touch / Glass: Projected Capacitive Multi-Touch Screen (P-CAP)
• Resolution: 1024 x 600
• Panel Brightness: 320 nits
• Contrast Ratio: 1000:1
• View Angles: 75, 75, 75, 70
• Active Area: 153.6 x 90 mm
• Processor: ARM A53 (Quad Core 2.0 GHz)
• Memory: 4 GB LPDDR4
• Storage: eMMC onboard 32 GB
• Operating System: Android 11 (default, upgradeable to Android 13); optional Linux Yocto 5.15.47 with Qt 5.15; optional Ubuntu Server 22.04
• Dimensions: 185 x 128 x 56 mm
• Cut out: 175 x 118 mm
• Weight: 0.9 kg
• Mounting: Panel mount; VESA mount
• Enclosure: Plastic housing with metal back cover
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0 °C to 50 °C
• Storage Temperature: -20 °C to 60 °C
• Shock: MIL-STD-810H Method 516.8 Procedure I
• Vibration: MIL-STD-810H Method 514.8 Procedure I
• IP Rating: Front IP65
• Certification: CE, FCC
• USB Ports: 2 x USB 2.0 Type A; 1 x Micro USB 2.0 OTG
• Serial Port: 1 x RS232/422/485 (default RS232)
• LAN: 1 x LAN 10/100/1000 Mbps (default); PoE (PD, 802.3at) optional
• Video: 1 x Micro HDMI output (optional)
• SD Card Slot: 1 x MicroSD card slot (max 32 GB)
• Accessories: 100–240V AC to DC adapter, power cord, VESA screws, mounting clips
• Power: 12V DC with terminal block; adapter: 12V 50W
