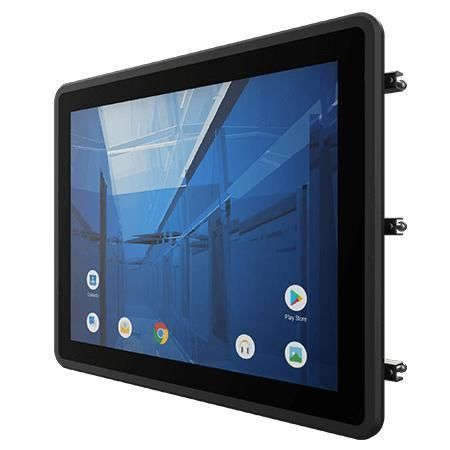

Multi-touch screen panel PC R15MG3S-EHC3

PCAP capacitive touch screen15"1024 x 768

Overview
Winmate R15MG3S-EHC3 is a 15.0-inch ARM A78+A55 E Series HMI Panel PC designed for machine control, factory automation and operator HMI. It targets industrial buyers, OEMs and system integrators requiring reliable, rugged hardware with long lifecycle availability. Key built-in attributes include a 15.0 inches projected capacitive multi-touch display, ARM 2 x A78 + 4 x A55 2.0 GHz CPU, fanless cooling for ultra-low power and quiet operation, front IP65 protection, and Android 13 as the default OS.

Key features

• 15.0 inches 1024 x 768 resolution with Projected Capacitive Multi-Touch (P-CAP)
• ARM 2 x A78 2.0 GHz + 4 x A55 2.0 GHz processor
• Fanless cooling system with ultra-low power consumption
• Front IP65 water and dust protection
• Android 13 (default); optional Linux Yocto 5.15.47 with QT 5.15 or Linux Ubuntu 22.04

Highlights / Product presentation

• Effortless gestures with P-Cap touch: supports single-, dual- and multi-touch with high precision and no pressure required.
• Android 13 for extended connectivity and customization, including support for BT LE Audio and MIDI 2.0 features.
• Whisper-quiet fanless thermal solution using heat sinks and vapor chambers for reliable temperature regulation.
• Rugged front bezel with IP65 rating suitable for industrial environments exposed to water jets and fine dust.

Certifications

• CE
• FCC

Technical specifications

• Display - Size: 15.0 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch Screen (P-CAP)
• Display - Resolution: 1024 x 768
• Display - Panel Brightness: 300 nits
• Display - Contrast Ratio: 2000:1
• Display - View Angles: 88/88/88/88
• Display - Active Area: 304.1 x 228.1 mm
• System - Processor: ARM 2 x A78 2.0 GHz + 4 x A55 2.0 GHz
• System - Memory: 4 GB LPDDR4
• System - Storage: Onboard 32 GB
• System - Operating System: Android 13 (Default); Optional: Linux Yocto 5.15.47 with QT 5.15; Linux Ubuntu 22.04
• Mechanical - Dimension: 367 x 291 x 65.8 mm
• Mechanical - Cut out: 342 x 261 mm
• Mechanical - Weight: 3.0 kg
• Mechanical - Mounting: Panel mount; VESA mount
• Mechanical - Enclosure: Metal front bezel with plastic back cover
• Mechanical - Cooling System: Fanless design (heat sinks / vapor chambers)
• Environment - Operating Humidity: 10% to 90% RH, non-condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -20°C to 60°C
• Environment - Shock: MIL-STD-810H Method 516.8 Procedure I
• Environment - Vibration: MIL-STD-810H Method 514.8 Procedure I
• Environment - IP rating: Front IP65
• Certification: CE, FCC
• IO Ports - USB: 2 x USB 2.0 Type A; 1 x USB 2.0 Type C (OTG)
• IO Ports - Serial: 1 x RS232/422/485 (Default RS232)
• IO Ports - LAN: 1 x LAN 10/100/1000 Mbps (Default); PoE (PD, 802.3at) optional
• IO Ports - Video: 1 x Micro HDMI output (optional)
• IO Ports - SD Card Slot: 1 x Micro SD card slot
• Accessory: 100~240V AC to DC Adapter; power cord; VESA screws; mounting clips
• Power - Power Rating: 12V DC with terminal block
• Power - Adapter: 12V 50W
