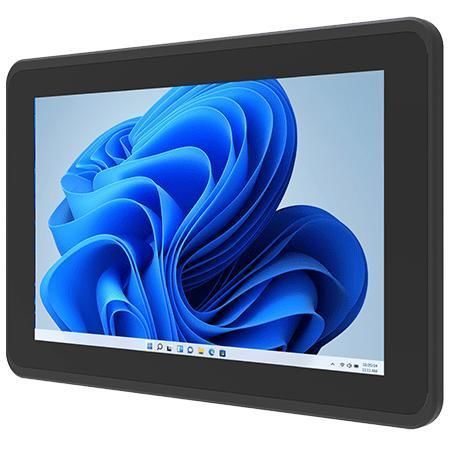

Multitouch screen panel PC W10IAN3S-EHH2

PCAP capacitive touch screen10.1"1280 x 800

Overview
The Winmate W10IAN3S-EHH2 is a 10.1" E Series HMI Panel PC powered by the Intel® Processor N150 (6M cache, up to 3.60 GHz). Designed for machine control, factory automation and operator HMI, it provides fanless operation, low power consumption, a front IP65-rated panel and dual high-speed Ethernet for industrial connectivity.

Key features

• 10.1" 1280 x 800 with Projected Capacitive Multi-Touch (PCAP)
• Intel® Processor N150, 6M Cache, up to 3.60 GHz
• Front IP65 water and dust protection
• Dual Gigabit Ethernet (2 x 2.5 Giga LAN)
• Fanless cooling and ultra-low power consumption

Certifications

• CE
• FCC

Display

• Size: 10.1 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Resolution: 1280 x 800
• Panel Brightness: 350 nits
• Contrast Ratio: 800:1
• View Angles: 85 / 85 / 85 / 85
• Active Area: 216.96 x 135.6 mm

System Specification

• Processor: Intel® Processor N150, 6M Cache, up to 3.60 GHz
• Memory: 8GB (default); 16GB (optional)
• Storage: 128GB SSD (default); optional 256GB / 512GB / 1TB / 2TB / 4TB SSD
• Ethernet controller: 2 x Intel® 2.5 Gigabit Ethernet
• Security: TPM 2.0
• Operating System (optional): Windows 11 IoT Enterprise (64-bit); Windows 11 Pro (64-bit); Linux Ubuntu 24.04 (Wake on Touch not supported on Ubuntu)
• WLAN / Bluetooth: optional (M.2 2230 E-Key for Wi‑Fi)

Mechanical

• Dimensions: 267 x 182 x 56.5 mm
• Cut out: 244 x 159 mm
• Weight: ~1.5 kg
• Mounting: Panel mount (default); VESA mount (optional)
• Enclosure: Metal housing & ABS+PC
• Cooling System: Fanless design

Environment

• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP rating: Front IP65

IO Ports

• USB: 2 x USB 3.2 Gen1 Type-A; 1 x USB 3.2 Gen2 Type-C (supports DP Alt. Mode)
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: 1 x HDMI 2.0 (optional)
• Expansion: 1 x M.2 2230 E-Key Slot (for Wi‑Fi)
• Power Input: 1 x 12V DC, 2.5φ DC jack

Accessory

• 100~240V AC to DC Adapter
• Power Cord
• VESA screws
• Mounting clips

Power

• Power Rating: 12V DC
• Adapter: 12V 50W

Technical specifications

• Model: W10IAN3S-EHH2
• Brand: Winmate
• Display size: 10.1"
• Resolution: 1280 x 800
• Touch: Projected Capacitive MultiTouch (PCAP)
• Processor: Intel® N150, 6M Cache, up to 3.60 GHz
• Memory: 8GB default; 16GB optional
• Storage: 128GB SSD default; up to 4TB optional
• Ethernet: Dual Intel® 2.5 Gigabit Ethernet
• USB: 2 x USB3.2 Gen1 Type-A; 1 x USB3.2 Gen2 Type-C (DP Alt. Mode)
• Serial: 1 x RS232/422/485
• Expansion: M.2 2230 E-Key for Wi‑Fi
• Video out: HDMI 2.0 (optional)
• Power input: 12V DC (2.5φ)
• Front protection: IP65
• Operating temp: 0°C to 50°C
• Storage temp: -10°C to 60°C
• Operating humidity: 10%–90% RH non-condensing
• Dimensions: 267 x 182 x 56.5 mm
• Cut-out: 244 x 159 mm
• Weight: ~1.5 kg
• Mounting: Panel mount (default), VESA optional
• Enclosure: Metal housing & ABS+PC
• Cooling: Fanless
• Security: TPM 2.0
• Certifications: CE, FCC
