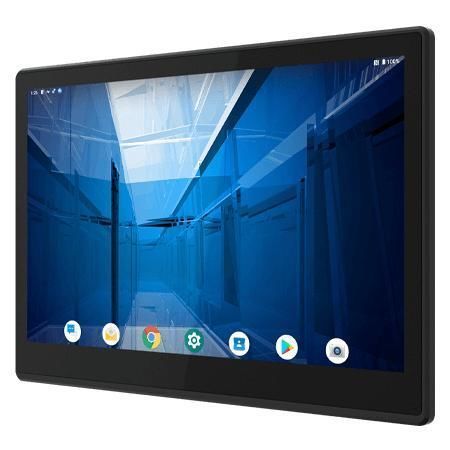

Multitouch screen panel PC W14IM3S-EHA1

PCAP capacitive touch screen14"1920 x 1080

Product Overview
Winmate W14IM3S-EHA1 is a 14-inch E Series HMI Panel PC for machine control, factory automation and operator interfaces. It pairs a 14.0" Full HD (1920x1080) projected capacitive multi-touch display with an ARM A53 quad-core 2.0GHz processor in a fanless, low-power design. The front bezel is rated IP65 for protection in industrial environments.

Key Features

• 14" 1920 x 1080 resolution with projected capacitive multi-touch (PCAP)
• ARM A53 Quad-Core 2.0GHz CPU
• Fanless cooling and ultralow power consumption
• Front IP65 water- and dust-proof bezel
• Supports Android (default) or Linux (optional)

Visuals & Ergonomics
The 14" Full HD PCAP display delivers clear visuals and precise touch input, operable with gloves. The front design is easy to clean and suitable for production lines, food processing and washdown areas.

Reliability & Industrial Use
Fanless architecture minimizes maintenance and operating noise. Metal housing with ABS+PC components and MIL-STD-810H shock and vibration tests support deployment in rugged and continuous-operation environments.

Software & Use Cases
Targeted at industrial buyers, OEMs and system integrators for machine control, operator HMI, kiosks and embedded automation where long lifecycle availability and stable hardware integration are required. Default OS is Android 11 (upgradeable to Android 13); optional Linux Yocto 5.15.47 with Qt 5.15 or Ubuntu Server 22.04.

Certifications
CE, FCC.

Technical specifications

• Model: W14IM3S-EHA1
• Display: Projected Capacitive Multi-Touch, 14.0 inches, 1920 x 1080
• Panel brightness: 700 nits; Contrast ratio: 1200:1; View angles: 89/89/89/89; Active area: 309.312 x 173.988 mm
• Processor: ARM A53 (Quad Core 2.0 GHz)
• Memory: 4 GB LPDDR4
• Storage: eMMC onboard 32 GB
• Operating System: Android 11 (Default, upgradable to Android 13); Linux Yocto 5.15.47 with QT 5.15 (Optional); Linux Ubuntu Server 22.04 (Optional)
• Dimensions: 340 x 220 x 62.7 mm; Cut out (panel mount): 318.6 x 198.6 mm; Weight: 2 kg
• Mounting: Panel mount; VESA mount
• Enclosure: Metal housing & ABS+PC
• Cooling: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C; Storage temperature: -20°C to 60°C
• Shock: MIL-STD-810H Method 516.8 Procedure I; Vibration: MIL-STD-810H Method 514.8 Procedure I
• IP rating: Front IP65
• Certification: CE, FCC
• USB: 2 x USB 2.0 Type A; 1 x Micro USB 2.0 OTG
• Serial: 1 x RS232/422/485 (Default RS232)
• LAN: 1 x LAN 10/100/1000 Mbps (Default); PoE (PD, 802.3at) optional
• Video: 1 x Micro HDMI output (Optional)
• SD card: 1 x Micro SD (max 32 GB)
• Accessories: 100~240V AC to DC adapter; power cord; VESA screws; mounting clips
• Power: 12V DC with terminal block; Adapter: 12V 50W
