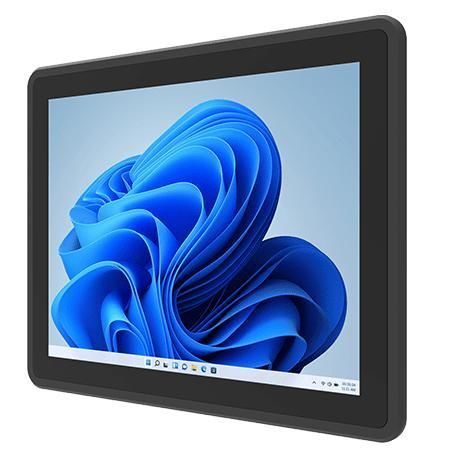

Multitouch screen panel PC R15IAN3S-EHC3

PCAP capacitive touch screen15"1024 x 768

Product Overview
Winmate R15IAN3S-EHC3 is a 15.0" E Series HMI Panel PC designed for machine control, factory automation and operator HMIs. Powered by Intel® Processor N150 (6M Cache, up to 3.60 GHz), it delivers responsive performance for control systems and monitoring applications. The unit features a fanless design, front IP65 protection and dual Intel® 2.5 Gigabit Ethernet controllers for reliable industrial connectivity.

Key Features

• 15.0" PCAP multi-touch display, 1024 x 768
• Intel® Processor N150 (6M Cache, up to 3.60 GHz)
• Front panel IP65 (water and dust protection)
• Dual 2.5 Gigabit Ethernet (2 x Intel® controllers)
• Fanless cooling and ultra-low power consumption

Certifications

• CE
• FCC

Display

• Size: 15.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Resolution: 1024 x 768
• Panel Brightness: 300 nits
• Contrast Ratio: 2000:1
• View Angles: 88,88,88,88
• Active Area: 304.1 x 228.1 mm

System Specification

• Processor: Intel® Processor N150, 6M Cache, up to 3.60 GHz
• Memory: 8 GB (Default); 16 GB (Optional)
• Storage: 128 GB SSD (Default); optional 256 GB, 512 GB, 1 TB, 2 TB, 4 TB SSD
• Ethernet controller: 2 x Intel® 2.5 Gigabit Ethernet controller
• Security: TPM 2.0
• Operating System options: Windows 11 IoT Enterprise (64-bit) (Optional); Windows 11 Pro 64-bit (Optional); Linux Ubuntu 24.04 (Optional; does not support Wake on Touch)
• WLAN: Support (Optional)
• Bluetooth: Support (Optional)

Mechanical

• Dimension: 367 x 291 x 65.8 mm
• Cut out: 342 x 261 mm
• Weight: 5.3 kg
• Mounting: Panel mount (Default); VESA mount (Optional)
• Enclosure: Metal housing & ABS+PC
• Cooling System: Fanless design

Environment

• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP rating: Front IP65

IO Ports

• USB: 2 x USB 3.2 Gen1 Type-A; 1 x USB 3.2 Gen2 Type-C (supports DP Alt. Mode)
• Serial: 1 x RS232/422/485 (Default RS232)
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: 1 x HDMI 2.0 (Optional)
• Expansion: 1 x M.2 2230 E-Key slot (for Wi-Fi module)
• Power Input: 1 x 12V DC, 2.5φ DC jack

Accessory

• 100~240V AC to DC Adapter
• Power Cord
• VESA screws
• Mounting clips

Technical specifications

• Model: R15IAN3S-EHC3
• Brand: Winmate
• Display size & type: 15.0" PCAP multi-touch, 1024 x 768
• Brightness / Contrast / Active area: 300 nits / 2000:1 / 304.1 x 228.1 mm
• Processor: Intel® N150, 6M Cache, up to 3.60 GHz
• Memory options: 8 GB (default), 16 GB optional
• Storage options: 128 GB SSD default; up to 4 TB optional
• Ethernet: Dual Intel® 2.5 Gigabit controllers
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise (64-bit), Windows 11 Pro 64-bit, Ubuntu 24.04
• Front protection: IP65
• Dimensions / Cut-out / Weight: 367 x 291 x 65.8 mm / 342 x 261 mm / 5.3 kg
• Mounting: Panel mount (default), VESA optional
• Enclosure & Cooling: Metal housing & ABS+PC, fanless
• Operating / Storage temperature: 0°C to 50°C / -10°C to 60°C
• Humidity: 10% to 90% RH non-condensing
• IO: 2x USB3.2 Gen1 A, 1x USB3.2 Gen2 C (DP Alt Mode), 1x RS232/422/485, 2x 2.5G LAN, 1x HDMI 2.0 (opt), 1x M.2 2230 E-Key
