Multitouch screen panel PC W14MG3S-EHA1
PCAP capacitive touch screen14"1920 x 1080

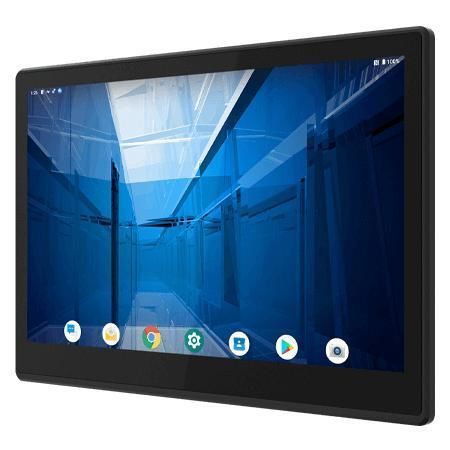

Multitouch screen panel PC - W14MG3S-EHA1 - Winmate, Inc. - PCAP capacitive touch screen / 14" / 1920 x 1080
Multitouch screen panel PC - W14MG3S-EHA1 - Winmate, Inc. - PCAP capacitive touch screen / 14" / 1920 x 1080
Multitouch screen panel PC - W14MG3S-EHA1 - Winmate, Inc. - PCAP capacitive touch screen / 14" / 1920 x 1080 - image - 2
Multitouch screen panel PC - W14MG3S-EHA1 - Winmate, Inc. - PCAP capacitive touch screen / 14" / 1920 x 1080 - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
PCAP capacitive touch screen, multitouch screen
Display size
14"
Resolution
1920 x 1080
Processor
ARM® Cortex®-A55 Quad-core, ARM Cortex-A78
Operating system
Linux® Yocto, Android
Construction
fanless, in metal housing
Mounting
VESA mounting
Applications
industrial, for the food industry, for self-service information kiosk
Protection level
IP65
Other characteristics
HMI, PoE
Memory size

4 GB

Description

Overview
The Winmate W14MG3S-EHA1 is a 14-inch E Series HMI Panel PC engineered for machine control, factory automation and operator interfaces. It combines a Full HD PCAP multi-touch display with an ARM 2 x A78 + 4 x A55 CPU, fanless cooling, front IP65 protection and flexible OS support (Android 13 default; optional Linux builds).

Key features
  • 14-inch Full HD (1920 x 1080) with Projected Capacitive (PCAP) multi-touch
  • ARM CPU: 2 x A78 2.0 GHz + 4 x A55 2.0 GHz
  • Fanless design for silent, low-maintenance operation
  • Front panel IP65 for dust and water protection
  • Supports Android 13 (default) and optional Linux Yocto / Ubuntu

Product details
  • Display: 14.0" Full HD, 700 nits, 1200:1 contrast, active area 309.312 x 173.988 mm, wide viewing angles
  • Memory & storage: 4GB LPDDR4, onboard 32 GB
  • OS: Android 13 (default); Linux Yocto 5.15.47 with Qt 5.15 (optional); Ubuntu 22.04 (optional)
  • Mechanical: 340 x 220 x 62.7 mm; cut-out 318.6 x 198.6 mm; weight ~2 kg; panel and VESA mounting; metal housing with ABS+PC
  • Environmental: operating 0°C to 50°C, humidity 10%–90% RH non-condensing; shock and vibration per MIL-STD-810H; front IP65
  • Power: 12V DC via terminal block; adapter 12V 50W included

Certifications
CE, FCC

Ports & connectivity
  • 2 x USB 2.0 Type A; 1 x USB 2.0 Type C (OTG)
  • 1 x RS232/422/485 (default RS232)
  • 1 x LAN 10/100/1000 Mbps (default); optional PoE PD (802.3at)
  • 1 x Micro HDMI output (optional); 1 x Micro SD card slot

Accessories
  • 100~240V AC to DC adapter
  • Power cord; VESA screws; mounting clips

Recommended applications
  • Machine control and operator HMI
  • Factory automation, food processing, and industrial kiosks
  • Embedded systems and OEM integrations requiring long lifecycle support

Technical specifications
  • Model: W14MG3S-EHA1
  • Brand: Winmate
  • Display touch: Projected Capacitive Multi Touch
  • Resolution: 1920 x 1080; Brightness: 700 nits; Contrast: 1200:1
  • CPU: ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz
  • RAM: 4GB LPDDR4; Storage: Onboard 32 GB
  • Dimensions: 340 x 220 x 62.7 mm; Cut out: 318.6 x 198.6 mm; Weight: 2 kg
  • Mounting: Panel mount; VESA mount
  • Front IP rating: IP65
  • Operating temp/humidity: 0°C to 50°C; 10%–90% RH non-condensing
  • Certifications: CE, FCC
