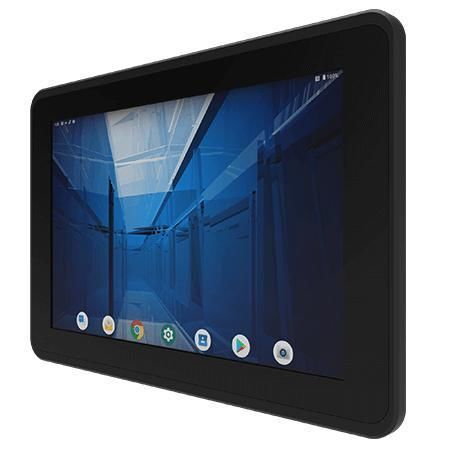

Multitouch screen panel PC W10MG3S-EHH2

PCAP capacitive touch screen10.1"1280 x 800

Overview
Winmate W10MG3S-EHH2 is a 10.1-inch ARM A78+A55 E Series HMI Panel PC engineered for machine control, factory automation and operator HMIs. It targets industrial buyers, OEMs and system integrators requiring long lifecycle availability, stable hardware integration and reliable field operation.

Key Features

• 10.1 inches, 1280 x 800 resolution with Projected Capacitive Multi-Touch (PCAP)
• ARM CPU: 2 x A78 2.0 GHz + 4 x A55 2.0 GHz
• Fanless cooling system and ultra-low power consumption
• Front panel certified IP65 (water and dust proof)
• Android 13 (default), optional Linux variants

Overview Highlights
Effortless Gestures with P-Cap Touch
Projected-capacitive touch supports single, dual and multi-touch without pressure, improving precision and operator comfort for industrial control panels and console applications.

Android 13: personalization and connectivity
Android 13 delivers enhanced customization and connectivity features such as BT LE Audio and MIDI 2.0 compatibility. Linux Yocto and Ubuntu 22.04 are available as options for specific embedded integrations.

Whisper-Quiet Cooling and Minimal Energy Draw
Fanless architecture using heat sinks and vapor chambers provides silent thermal regulation and reduced maintenance, suitable for panel-mounted industrial setups.

Front IP65 Water and Dust Proof Certification
Front IP65 rating protects against water jets and fine dust, enabling operation in demanding environments.

Certifications

• CE
• FCC

Technical specifications

• Display: Size: 10.1 inches; Touch / Glass: Projected Capacitive Multi Touch Screen; Resolution: 1280 x 800; Panel Brightness: 350 nits; Contrast Ratio: 800:1; View Angles: 85/85/85/85; Active Area: 216.96 x 135.6 mm
• System: Processor: ARM 2 x A78 2.0 GHz + 4 x A55 2.0 GHz; Memory: 4 GB LPDDR4; Storage: Onboard 32 GB; OS: Android 13 (Default); Linux Yocto 5.15.47 with Qt 5.15 (Optional); Linux Ubuntu 22.04 (Optional)
• Mechanical: Dimensions: 267 x 182 x 56.5 mm; Cut-out: 244 x 159 mm; Weight: 1.5 kg; Mounting: Panel mount and VESA mount; Enclosure: Metal front bezel with plastic back cover; Cooling: Fanless design
• Environment: Operating Humidity: 10%–90% RH non-condensing; Operating Temperature: 0°C–50°C; Storage Temperature: -20°C–60°C; Shock: MIL-STD-810H Method 516.8 Procedure I; Vibration: MIL-STD-810H Method 514.8 Procedure I; Front IP rating: IP65
• Certifications: CE, FCC
• IO Ports: USB: 2 x USB 2.0 Type A; 1 x USB 2.0 Type C (OTG); Serial: 1 x RS232/422/485 (Default RS232); LAN: 1 x 10/100/1000 Mbps (Default), PoE (PD, 802.3at) optional; Video: 1 x Micro HDMI output (optional); SD: 1 x Micro SD card slot
• Accessory: 100~240V AC to DC adapter; Power cord; VESA screws; Mounting clips
• Power: Power rating 12V DC with terminal block; Adapter: 12V 50W
