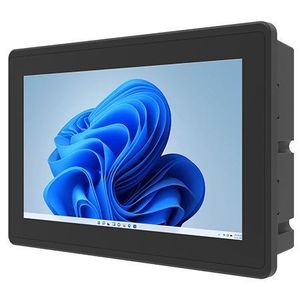

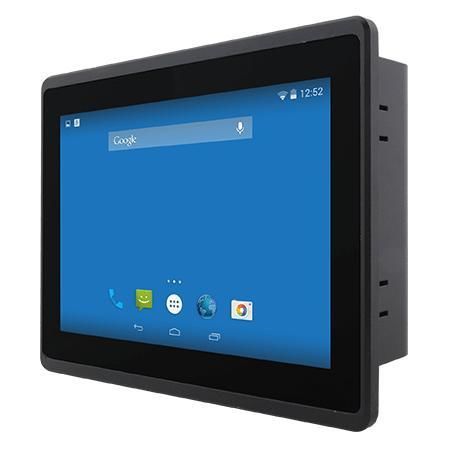

Multi-touch screen panel PC W07FA3S-EHO1

PCAP capacitive touch screen7"1024 x 600

Overview
Winmate W07FA3S-EHO1 is a 7-inch HMI panel PC based on the NXP i.MX6 E series Dual Core 1.0 GHz processor. It is designed for machine control, factory automation and operator HMI applications. The unit features a fanless design, projected capacitive multi-touch display, front IP65 protection and multiple industrial I/O options including USB, RS232/422/485 and CAN bus. PoE PD (802.3at) is available as an option.

Key features

• 7-inch 1024 x 600 projected capacitive (P-CAP) multi-touch display
• NXP i.MX6 Dual Core 1.0 GHz processor
• Fanless cooling and metal housing
• Front panel protection IP65
• Industrial I/O: USB, RS232/422/485, CANBUS, LAN with optional PoE

Product highlights

• True Flat design: Flat front surface for easy cleaning and reduced dust accumulation.
• Power over Ethernet (PoE): Optional PoE PD support to carry data and power over a single cable for simplified installations.
• Low-power ARM computing: ARM-based NXP i.MX6 platform providing suitable performance for embedded industrial IoT tasks.
• P-Cap touch: Glass cover lens with scratch resistance, supporting 4-point multi-touch and finger operation.
• Quick panel installation: Panel mounting clips for fast installation without visible drilling.

Certifications

• Front IP65
• CE
• FCC

Technical specifications

• Display: 7.0 inches; Resolution: 1024 x 600; Active area: 153.6 x 90 mm; View angles: 75/75/75/70
• Brightness / Contrast: panel data varies by module (e.g. 1000 nits / 320 nits; contrast 700:1 / 500:1)
• Processor: NXP i.MX6 Dual Core, 1.0 GHz
• Memory: 1 GB default; 2 GB optional
• Storage: eMMC onboard 16 GB default; 32 GB optional
• OS options: Linux Ubuntu 18.04, Android 6.0, Debian 7.0, Linux 4.1.15 with Qt 5.5
• Connectivity: 1 x Mini USB console, 1 x USB OTG, 1 x USB 2.0 Type-A, 1 x RS232/422/485, 1 x CANBUS (D-sub9), 1 x RJ45 LAN (PoE PD optional), 1 x Micro HDMI (optional), 1 x Micro SD slot, 1 x mPCIe slot
• Power: 12V DC input (2-pin terminal); adapter 12V 50W
• Mechanical: Dimensions 185 x 128 x 56 mm; Cut out 174.9 x 117.7 mm; Weight ~0.9 kg; Panel mount and VESA mount; Metal housing
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temperature 0°C to 50°C; Storage temperature -10°C to 60°C (some variants -20°C to 60°C)
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips, driver CD & manual
