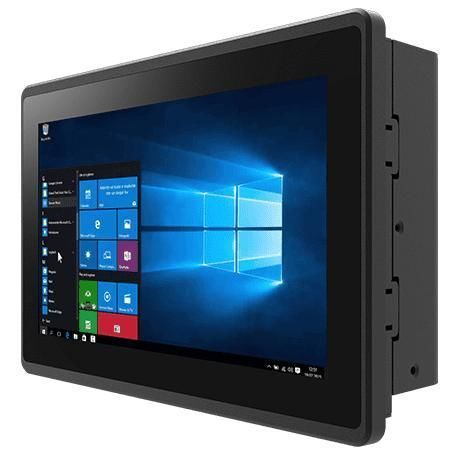

Multitouch screen panel PC W07IE3S-EHT1

PCAP capacitive touch screen7"1024 x 600

Overview
Winmate W07IE3S-EHT1 is a 7-inch E Series HMI Panel PC powered by Intel® Celeron® N6211 (up to 3.0 GHz). It is designed for machine control, factory automation and operator HMI applications requiring reliable field operation, fanless low-power design, long lifecycle availability and rugged front protection.

Key features

• 7 inch 1024 x 600 resolution with Projected Capacitive (P-Cap) touchscreen
• Intel® Celeron® N6211 processor (1.5M Cache, up to 3.0 GHz)
• Front IP65 water and dust proof
• Dual Gigabit / 2.5 Giga Ethernet controllers (2 x RJ45)
• Fanless cooling system and ultra-low power consumption
• Optional Power over Ethernet (PoE) support and TPM 2.0

Product highlights & advantages

• True-flat front surface for easy cleaning and reduced dust accumulation
• PoE option reduces cabling by combining data and power in one line
• Embedded CPU choice optimized for industrial control and OEM integration
• P-Cap touch with glass cover lens, scratch resistant and multi-touch capable
• Mounting clips for quick panel installation; optional VESA mount

Certifications

• Front IP65
• CE
• FCC

Technical specifications

• Model: W07IE3S-EHT1
• Brand: Winmate
• Display — Size: 7.0 inches; Resolution: 1024 x 600; Brightness: 320 nits; Contrast Ratio: 1000:1; View Angles: 75,75,75,70; Active Area: 153.6 x 90 mm
• Touch / Glass: Projected Capacitive Multi Touch Screen with glass cover
• System — Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 1 x SO-DIMM DDR4 3200 MHz — 4GB default; 8GB / 16GB optional
• Storage: 1 x M.2 2242 B-key SSD 128GB default; 256GB / 512GB optional
• Ethernet: 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN RJ45)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Windows 10 IoT Enterprise 64-bit; Linux Ubuntu 22.04
• Mechanical: Dimensions 185 x 128 x 56 mm; Cut out 174.9 x 117.7 mm; Weight 0.9 kg; Enclosure Metal Housing & ABS+PC; Mounting Panel mount default, VESA optional; Cooling Fanless
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temp 0°C to 50°C; Storage temp -10°C to 60°C; Front IP65
• IO Ports: 2 x USB3.2 Gen2x1 Type-A; 1 x RS232/422/485 (default RS232); 2 x 2.5 Giga LAN RJ45; 1 x HDMI 2.0 (optional); Expansion: 1 x M.2 2242 B-Key (SATA III SSD), 1 x M.2 2230 E-Key (Wi‑Fi)
• Power: Input 12V DC (2.5φ jack); Adapter 12V 50W
• Accessories: 100~240V AC to DC Adapter; Power cord; VESA screws; Mounting clips
