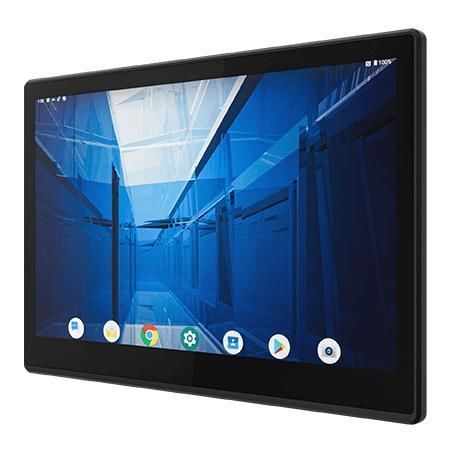

Multitouch screen panel PC W14FA3S-EHA1

PCAP capacitive touch screen14"1920 x 1080

Overview
The Winmate W14FA3S-EHA1 is a 14-inch HMI panel PC based on the NXP i.MX6 E-Series Dual Core 1.0 GHz processor, designed for machine control, factory automation and operator HMI applications. The unit features a true flat front, fanless cooling, front IP65 protection, PoE support and a wide set of industrial I/O for system integration.

Key features

• 14" 1920×1080 display with Projected Capacitive Multi-Touch (P-CAP)
• NXP i.MX6 Dual Core 1.0 GHz processor
• Fanless design for low power and silent operation
• Front IP65 water and dust protection
• Industrial I/O: USB (Type-A, OTG, Console), RS232/422/485, CANBUS (D-sub9), Micro SD, Micro HDMI (optional)
• LAN RJ45 with PoE PD (802.3at) support

Design highlights

• True flat front for easy cleaning and hygiene-sensitive environments
• P-CAP multi-touch with toughened glass cover and scratch resistance
• Compact panel-mount form factor with clips for quick installation; optional VESA
• Metal housing with ABS+PC components for industrial durability

Applications

• Machine control panels and operator HMIs
• Factory automation and embedded control systems
• OEM and integrator projects requiring PoE and panel-mount form factor

Certifications

• CE
• FCC

Technical specifications

• Model: W14FA3S-EHA1
• Brand: Winmate
• Display: Projected Capacitive Multi-Touch Screen, 14.0" (active area 309.312 x 173.988 mm)
• Resolution: 1920 x 1080, Brightness: 700 nits, Contrast: 1200:1, View angles: 89/89/89/89
• Processor: NXP i.MX6 Dual Core 1.0 GHz
• Memory: 1 GB (default), 2 GB (optional)
• Storage: eMMC 16 GB (default), eMMC 32 GB (optional)
• OS (optional): Linux Ubuntu 18.04, Android 6.0, Debian 7.0, Linux 4.1.15 QT 5.5
• Dimensions: 340 x 220 x 62 mm; Cut out: 318.6 x 198.6 mm; Weight: 2 kg
• Mounting: Panel mount (default), VESA mount (optional)
• Operating: 0°C to 50°C; Storage: -10°C to 60°C; Humidity: 10% to 90% RH non-condensing
• I/O: 1 x Console (Mini USB), 1 x USB OTG, 1 x USB2.0 (Type-A), 1 x RS232/422/485, 1 x Micro HDMI (optional), 1 x Micro SD, 1 x mPCIe slot, 1 x CANBUS (D-sub9), 1 x LAN RJ45 (PoE PD)
• Power input: 12V DC (2-pin terminal block); Adapter: 12V 50W

Accessories & power

• Supplied accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips
• Power rating: 12V DC (adapter 12V 50W)
