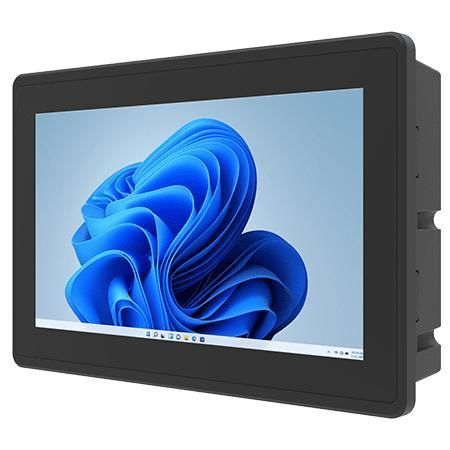

Multitouch screen panel PC W07IAN3S-EHO1

PCAP capacitive touch screen1000 nits7"

Overview
The W07IAN3S-EHO1 is a 7" E-Series HMI Panel PC for machine control, factory automation and operator interfaces. It integrates an Intel® Processor N150 (6M Cache, up to 3.60 GHz) in a fanless, ultra-low power design with a front IP65 rating and a Projected Capacitive (PCAP) multi-touch display suitable for harsh industrial environments.

Key Features

• 7" 1024 x 600 resolution with Projected Capacitive MultiTouch (PCAP)
• Intel® Processor N150, 6M Cache, up to 3.60 GHz
• Front panel IP65 water and dust protection
• Dual 2.5 Gigabit Ethernet for high-speed connectivity
• Fanless cooling and ultra-low power consumption

Certifications

• CE
• FCC

Product Highlights
The unit features a metal housing with ABS+PC elements, TPM 2.0 security, multiple storage and memory configurations, optional WLAN/BT via M.2 2230 E‑Key, and flexible I/O including USB (Type‑A and Type‑C), serial, dual 2.5G LAN and optional HDMI. Designed for panel-mount installation (VESA optional), it is suited to industrial control panels and edge HMI applications requiring long lifecycle availability and reliable operation.

Technical specifications

• Display Size: 7.0 inches; Touch/Glass: Projected Capacitive Multi Touch Screen; Resolution: 1024 x 600; Panel Brightness: 1000 nits; Contrast Ratio: 700:1; View Angles: 75,75,75,70; Active Area: 153.6 x 90 mm
• Processor: Intel® Processor N150 6M Cache, up to 3.60 GHz
• Memory: 8GB (Default); 16GB (Optional)
• Storage: 128GB SSD (Default); optional 256GB / 512GB / 1TB / 2TB / 4TB SSD
• Ethernet controller: 2 x Intel® 2.5 Gigabit Ethernet Controller
• Security: TPM 2.0
• Operating System (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 24.04 (Optional, does not support Wake on Touch)
• WLAN / Bluetooth: Support (Optional, via M.2 2230 E‑Key)
• Dimension: 185 x 128 x 56 mm; Cut out: 174.9 x 117.7 mm; Weight: 2.4 kg
• Mounting: Panel mount (Default); VESA mount (Optional)
• Enclosure: Metal Housing & ABS+PC; Cooling System: Fanless Design
• Operating Humidity: 10% to 90% RH, Non-Condensing; Operating Temperature: 0°C to 50°C; Storage Temperature: -10°C to 60°C; IP rating: Front IP65
• IO Ports - USB: 2 x USB 3.2 Gen1x1 (Type-A); 1 x USB 3.2 Gen2x1 Type-C (support DP Alt. mode)
• IO Ports - Serial: 1 x RS232/422/485 (Default RS232)
• IO Ports - LAN: 2 x 2.5 Giga LAN RJ45 Connector
• IO Ports - Video: 1 x HDMI 2.0 (Optional)
• Expansion Port: 1 x M.2 2230 E-Key Slot (for Wi‑Fi module)
• Power Input: 1 x 12V DC, 2.5φ DC jack; Power Rating: 12V DC; Adapter: 12V 50W
• Accessories: 100~240V AC to DC adapter; power cord; VESA screws; mounting clips
