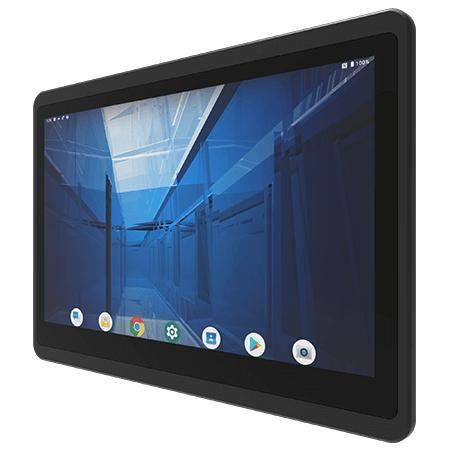

Multitouch screen panel PC W15MG3S-EHA4

PCAP capacitive touch screen15.6"1920 x 1080

Overview
Winmate W15MG3S-EHA4 is a 15.6-inch E Series HMI Panel PC for machine control, factory automation and operator interfaces. It combines an ARM-based 6-core CPU, fanless thermal design, front IP65 protection and Android 13 by default, with optional Linux distributions for integration projects.

Key features

• 15.6" Full HD (1920 x 1080) with Projected Capacitive Multi-Touch (PCAP)
• ARM processor: 2 × A78 2.0 GHz + 4 × A55 2.0 GHz
• Fanless cooling for silent, low-power operation
• Front panel IP65 water and dust protection
• Android 13 default OS; Linux Yocto and Ubuntu optional

Display

• Size: 15.6 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Resolution: 1920 × 1080
• Panel Brightness: 400 nits
• Contrast Ratio: 800:1
• View Angles: 85/85/85/85
• Active Area: 344.16 × 193.59 mm

System specification

• Processor: ARM 2 × A78 2.0 GHz + 4 × A55 2.0 GHz
• Memory: 4 GB LPDDR4
• Storage: Onboard 32 GB
• Operating System: Android 13 (default); Linux Yocto 5.15.47 with Qt 5.15 (optional); Ubuntu 22.04 (optional)

Mechanical

• Dimensions: 402 × 251.3 × 63 mm
• Cut out: 369 × 228 mm
• Weight: 2.8 kg
• Mounting: Panel mount
• Enclosure: Metal front bezel, plastic back cover
• Cooling: Fanless design

Environment

• Operating humidity: 10% to 90% RH, non‑condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 60°C
• Shock: MIL‑STD‑810H Method 516.8 Procedure I
• Vibration: MIL‑STD‑810H Method 514.8 Procedure I
• IP rating: Front IP65

Certification

• CE
• FCC

IO ports

• USB: 2 × USB 2.0 Type A; 1 × USB 2.0 Type C (OTG)
• Serial: 1 × RS232/422/485 (default RS232)
• LAN: 1 × 10/100/1000 Mbps (PoE PD 802.3at optional)
• Video: Micro HDMI output (optional)
• SD: Micro SD card slot

Accessory

• 100–240V AC to DC adapter
• Power cord
• VESA screws
• Mounting clips

Power

• Power input: 12V DC via terminal block
• Adapter: 12V 50W recommended

Technical specifications

• Model: W15MG3S-EHA4
• Display: 15.6" FHD (1920×1080), 400 nits, PCAP multi-touch
• Processor: ARM 2×A78 + 4×A55 @ 2.0 GHz
• Memory / Storage: 4 GB LPDDR4; onboard 32 GB
• Enclosure & Mounting: Metal front bezel, plastic back cover; panel mount
• Dimensions / Weight: 402 × 251.3 × 63 mm; 2.8 kg
• Cooling: Fanless
• Front protection: IP65
• Environmental: 0°C to 50°C operating; -20°C to 60°C storage; 10%–90% RH non‑condensing
• Shock & Vibration: MIL‑STD‑810H
• IO: USB 2.0 (A×2, C OTG×1), RS232/422/485×1, LAN 10/100/1000×1 (PoE optional), Micro HDMI (opt), Micro SD slot
• Power: 12V DC terminal block; adapter 12V 50W
• Certifications: CE, FCC
