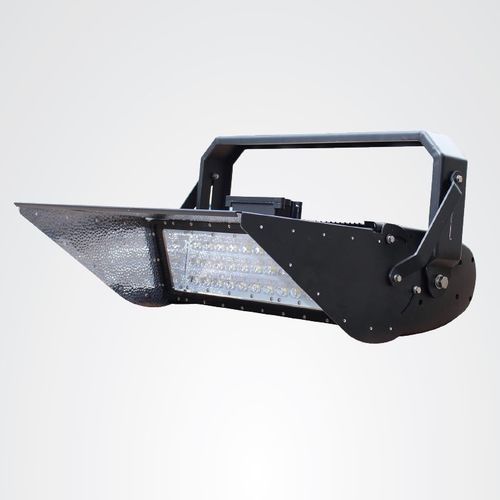

Lamp floodlight JNHM2-450S-5000-A1-DIM

LEDHIDHPS

Product description
450 W LED floodlight equipped with original Philips Lumileds modules and Meanwell HLG-480H driver. Dimmable via 0-10V. IP65 and IK08 rated. Symmetric 15°x15° beam designed for high-mast floodlighting. Total output 51,500 lm; lifespan up to 80,000 hours. Equivalent to 1000 W metal halide/HID/HPS.

Features

• Original Philips Lumileds LEDs
• Meanwell HLG-480H LED driver
• Dimmable via 0-10V control
• High ingress protection: IP65; impact rating IK08
• Marine-grey die-cast housing with tempered glass lens
• Symmetric 15°x15° beam for focused high-mast lighting
• Long rated lifespan: 80,000 hours
• Surge protection 10kV; Power factor >0.95

Product Specifications
SKU: JNHM2-450S-5000-A1-DIM
Power Consumption: 450 W (System power: 495 W)
Input Voltage / Range: 120-277 V AC (optional 347–488 V AC)
Beam Angle: 15°x15° symmetric (fixed)
IP Rating: IP65
IK Impact Rating: IK08
CRI: >70
Colour Temperature: 5000 K
LED Type: Philips Lumileds (4 modules)
LED Driver: Meanwell HLG-480H
Dimming: 0-10V
Lens Material: Tempered glass
Housing Colour: Marine-grey
Warranty: 5 years
Power Factor: >0.95
Surge Protection: 10kV
Input Cable: H07RN-F 3G1.0
Operating Temperature: -20°C to 45°C
Humidity Range: 10%–95% RH
Lifespan: 80,000 hours
Total Lumen Output: 51,500 lm
Efficacy: 120 lm/W
Dimensions (H×L×W): 550×480×320 mm
Net Weight: 10 kg

Packaging & Shipping
Net Weight (each): 10 kg
Export Carton Dimensions: 900×700×320 mm
Products per Carton: 2
Export Carton Gross Weight: 13 kg

Specification Details
450 W LED floodlight with Philips Lumileds and Meanwell driver(s). Dimmable (0-10V). IP65 protection. Designed for high-mast and stadium floodlighting applications.

Technical specifications

• SKU: JNHM2-450S-5000-A1-DIM
• Power Consumption: 450 W (System power: 495 W)
• Input Voltage: 120-277 V AC (optional 347–488 V AC)
• Beam Angle: 15°x15° symmetric (fixed)
• IP Rating: IP65
• IK Rating: IK08
• CRI: >70
• LED Type: Philips Lumileds (4 modules)
• Colour Temperature: 5000 K
• Dimming: 0-10V
• Driver: Meanwell HLG-480H
• Lens: Tempered glass
• Housing Colour: Marine-grey
• Warranty: 5 years
• Power Factor: >0.95
• Surge Protection: 10kV
• Input Cable: H07RN-F 3G1.0
• Operating Temperature: -20°C to 45°C
• Humidity Range: 10%–95% RH
• Lifespan: 80,000 hours
• Total Lumen Output: 51,500 lm
• Efficacy: 120 lm/W
• Dimensions (H×L×W): 550×480×320 mm
• Net Weight: 10 kg
