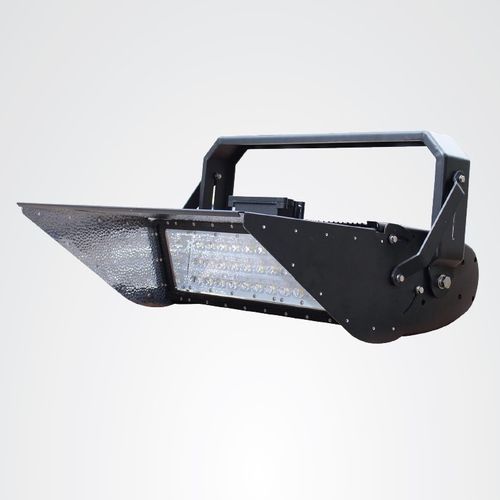

LED floodlight JNHM2-2450S-5000-A5-DIM

HIDHPSIP65

Description
2450 Watt LED flood light, with original Philips Lumileds and Meanwell driver(s). Dimmable. IP65. Replaces 100 Watt metal halide/HID/HPS.

Features

• Original Philips Lumileds LED modules
• Meanwell HLG-1000H LED driver (dimmable)
• 0-10V dimming capability
• Ingress protection IP65 and IK08 impact rating
• Symmetric 90°x90° beam angle (fixed)
• High total lumen output and high efficacy (281,500 lm; 120 lm/W)
• Surge protection 10kV
• Power factor >0.95
• Tempered glass lens
• Robust marine-grey housing
• Designed working temperature -20°C ~ 45°C and working humidity 10%-95% RH
• Long lifespan: 80,000 hours
• Warranty period: 5 years

Product Specifications
Product SKU: JNHM2-2450S-5000-A5-DIM
Power Consumption: 2450 W
Input Voltage: 120-277 (120-277V AC / 347~488V AC optional)
Beam Angle (°): 90°
IP Rating: IP65
Colour Rendering Index: >70
LED Type: Philips Lumileds
Colour Temperature (K): 5000 K
IK Impact Rating: IK08
Dimming Capability: 0-10V
Housing Colour: Marine-Grey
Warranty Period (Years): 5
Power Factor: >0.95
Surge Protection: 10kV
Input Cable: H07RN-F 3G2.5
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-95% RH
Lifespan (Hours): 80,000 hours
Beam Angle Range: 90°x90° (Fixed)
Beam Angle Format: Symmetric
Number of LED Modules: 8 modules
LED Driver Brand: Meanwell HLG-1000H
Lens Material: Tempered Glass
System Power (W): 2495 W
Fixture Height (mm): 550 mm
Fixture Length (mm): 480 mm
Fixture Width (mm): 320 mm
Total Lumens Output: 281,500 lm
Efficacy (lm/W): 120 lm/W

Packaging & Shipping
Net Weight (kg): 44 kg
Export Carton Dimensions (mm): 900×700×320 mm
Products per Carton: 2
Export Carton Gross Weight (kg): 47 kg
Fixture Height (mm): 550 mm
Fixture Width (mm): 320 mm
Fixture Length (mm): 480 mm

Technical specifications

• Power: 2450 W
• System Power: 2495 W
• Input Voltage: 120-277V AC (347~488V AC optional)
• Beam Angle: 90°x90° symmetric
• IP Rating: IP65
• CRI: >70
• CCT: 5000 K (cool white)
• LED Type: Philips Lumileds
• Driver: Meanwell HLG-1000H
• Dimming: 0-10V
• Surge Protection: 10kV
• Power Factor: >0.95
• Lifespan: 80,000 hours
• Total Lumens: 281,500 lm
• Efficacy: 120 lm/W
• Number of LED Modules: 8
• Lens Material: Tempered Glass
• Fixture Dimensions (H×L×W): 550×480×320 mm
• Net Weight: 44 kg
• Warranty: 5 years
