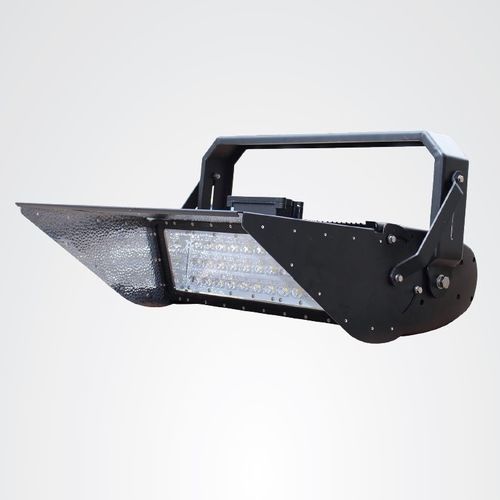

LED floodlight JNHM2-2450S-5000-A2-DIM

HIDHPSIP65

Short description
2450 W LED high-mast flood light (SKU JNHM2-2450S-5000-A2-DIM) fitted with Philips Lumileds LEDs and Meanwell HLG-1000H driver. Dimmable via 0-10V. Ingress protection IP65 and IK08 impact rating. Color temperature 5000 K (cool white). Total luminous flux 281,500 lm and efficacy 120 lm/W. Intended for industrial high-mast, stadium and large-area installations to replace conventional HID/HPS fixtures.

Product specifications

• SKU: JNHM2-2450S-5000-A2-DIM
• Power Consumption: 2450 W
• System Power: 2495 W
• Input Voltage: 120–277 V AC (347–488 V AC optional)
• Beam Angle: 60°x60° symmetric (fixed)
• IP Rating: IP65
• IK Rating: IK08
• LED Type: Philips Lumileds
• LED Driver: Meanwell HLG-1000H
• Colour Temperature: 5000 K
• CRI: >70
• Dimming: 0-10V
• Power Factor: >0.95
• Surge Protection: 10 kV
• Total Lumens: 281,500 lm
• Efficacy: 120 lm/W
• Lifespan: 80,000 hours
• Housing Colour: Marine-Grey
• Lens Material: Tempered Glass
• Working Temperature Range: -20°C to 45°C
• Working Humidity Range: 10%–95% RH
• Fixture Dimensions (H×L×W): 550 mm × 480 mm × 320 mm
• Net Weight: 44 kg
• Number of LED Modules: 8

Packaging & Shipping

• Net Weight (per unit): 44 kg
• Export Carton Dimensions: 900 × 700 × 320 mm
• Products per Carton: 2
• Export Carton Gross Weight: 47 kg

Specification Details
High-output LED flood light engineered for reliable long-term operation in outdoor industrial environments. Integrated surge protection and high power factor support stable performance on commercial sites. Optional higher input-voltage configuration available for specific grid requirements.

Technical features

• High total luminous flux suitable for high-mast and stadium lighting
• Efficient thermal design and tempered glass lens
• 0-10V dimming for integration with lighting control systems
• Meanwell HLG series drivers for stable current supply
• Philips Lumileds for lumen consistency and long lifespan
• Robust IP65/IK08 enclosure for outdoor installation
• Optional input voltage 347–488 V AC for high-voltage networks
