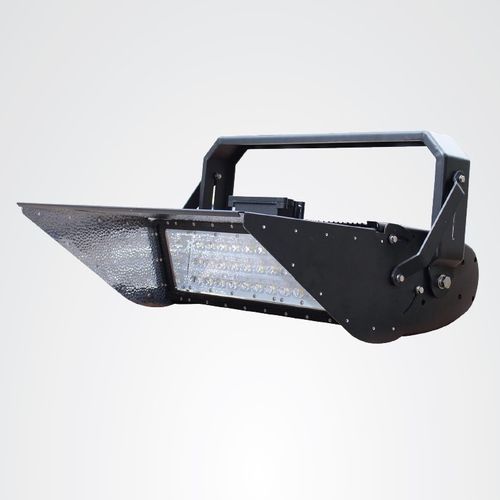

LED floodlight JNHM2-450S-5000-A2-DIM

IP65IK 08long-life

Description
450 W LED high-mast floodlight fitted with Philips Lumileds modules and Meanwell HLG-480H driver. Dimmable via 0-10V. IP65 ingress protection. Designed to replace traditional metal halide/HID/HPS high-mast luminaires. Total output 51,500 lm; efficacy 120 lm/W; rated lifetime 80,000 hours.

Features

• Original Philips Lumileds LED modules
• Meanwell HLG-480H driver
• Dimmable via 0-10V control
• Ingress protection: IP65
• Impact rating: IK08
• Tempered glass lens
• High efficacy: 120 lm/W

Product specifications (table)
SKU: JNHM2-450S-5000-A2-DIM
Power consumption: 450 W (system power 495 W)
Input voltage: 120-277 V AC (347–488 V AC optional)
Beam angle: 60°×60° symmetric (fixed)
IP rating: IP65
Color rendering index (CRI): >70
LED type: Philips Lumileds (4 modules)
Color temperature: 5000 K
Dimming capability: 0-10V
Driver brand: Meanwell HLG-480H
Surge protection: 10 kV
Power factor: >0.95
Lens material: Tempered glass
IK impact rating: IK08
Lifespan: 80,000 hours
Operating temperature: -20 °C to 45 °C
Operating humidity: 10%–95% RH
Total lumens output: 51,500 lm
Efficacy: 120 lm/W
Fixture dimensions (H×L×W): 550 × 480 × 320 mm
Net weight: 10 kg

Packaging & Shipping
Net weight (per unit): 10 kg
Export carton dimensions (mm): 900 × 700 × 320 mm
Products per carton: 2
Export carton gross weight: 13 kg

Technical specifications

• SKU: JNHM2-450S-5000-A2-DIM
• Power: 450 W (system power 495 W)
• Input voltage: 120–277 V AC (347–488 V AC optional)
• Beam angle: 60°×60° symmetric
• IP rating: IP65
• CRI: >70
• LED: Philips Lumileds, 4 modules
• Color temperature: 5000 K
• Dimming: 0-10V
• Driver: Meanwell HLG-480H
• Surge protection: 10 kV
• Power factor: >0.95
• Lens: Tempered glass
• IK rating: IK08
• Lifespan: 80,000 hours
• Operating temperature: -20 °C to 45 °C
• Operating humidity: 10%–95% RH
• Total lumens: 51,500 lm
• Efficacy: 120 lm/W
• Fixture dimensions (H×L×W): 550 × 480 × 320 mm
• Net weight: 10 kg
