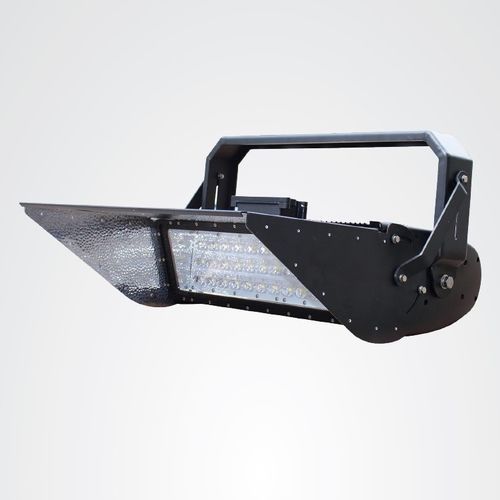

LED floodlight JNHM2-2450S-5700-A2-DIM

HIDHPSIP65

Description
2450 W LED high-mast flood light equipped with Philips Lumileds modules and Meanwell HLG-1000H drivers. Dimmable via 0-10V control. IP65 rated with IK08 impact protection. Designed for high-mast installations, industrial yards, ports and sports facilities; replaces 100W metal halide / HID / HPS fixtures.

Features

• Original Philips Lumileds LED modules
• Meanwell HLG-1000H driver(s)
• Dimmable (0-10V)
• Ingress protection: IP65
• Impact rating: IK08
• Housing colour: Marine-Grey
• Designed to replace 100W metal halide / HID / HPS

Product Specifications
Product SKU: JNHM2-2450S-5700-A2-DIM
Power Consumption: 2450 W
Input Voltage: 120-277 V (347~488V AC optional)
Beam Angle (°): 60°x60°
IP Rating: IP65
Color Rendering Index (CRI): >70
LED Type: Philips Lumileds
Colour Temperature (K): 5700 K
IK Impact Rating: IK08
Dimming Capability: 0-10V
Housing Colour: Marine-Grey
Warranty Period (Years): 5
Power Factor: >0.95
Surge Protection: 10kV
Input Cable: H07RN-F 3G2.5
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-95% RH
Lifespan (Hours): 80,000 hours
Total Lumens Output: 281,500 lm
Efficacy (lm/W): 120 lm/W
System Power (W): 2495 W
Fixture Height (mm): 550 mm
Fixture Length (mm): 480 mm
Fixture Width (mm): 320 mm
Beam Angle Format: Symmetric
Number of LED Modules: 8 modules
LED Driver Brand: Meanwell HLG-1000H
Lens Material: Tempered Glass

Technical specifications

• SKU: JNHM2-2450S-5700-A2-DIM
• System Power: 2495 W
• Nominal Power Consumption: 2450 W
• Input Voltage Range: 120-277 V AC (347~488 V AC optional)
• Beam Angle: 60°x60° (fixed, symmetric)
• IP Rating: IP65
• IK Rating: IK08
• LED Type: Philips Lumileds
• LED Driver: Meanwell HLG-1000H
• Colour Temperature: 5700 K
• CRI: >70
• Dimming: 0-10V
• Power Factor: >0.95
• Surge Protection: 10 kV
• Input Cable: H07RN-F 3G2.5
• Operating Temperature: -20°C to 45°C
• Operating Humidity: 10%–95% RH
• Lifespan: 80,000 hours
• Total Lumens: 281,500 lm
• Efficacy: 120 lm/W
• Fixture Dimensions (H×L×W): 550×480×320 mm
• Number of LED Modules: 8
• Lens Material: Tempered Glass
• Housing Colour: Marine-Grey
• Warranty: 5 years
