LED floodlight JNHM2-450S-5700-A4-DIM

HIDIP65IK 08

Product description

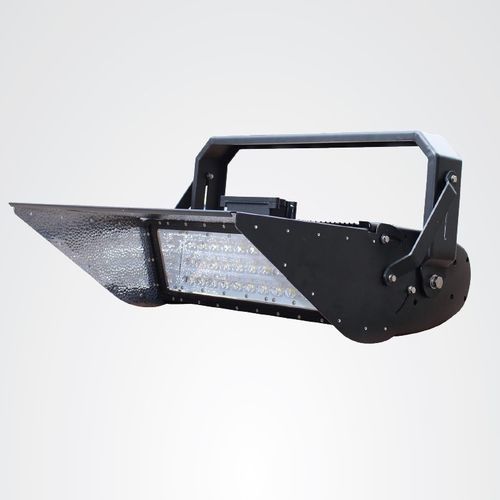

High-mast LED floodlight JNHM2-450S-5700-A4-DIM providing 51,500 lm output at 450 W consumption. Fitted with original Philips Lumileds LEDs and Meanwell HLG-480H driver. Dimmable (0-10V) and designed for outdoor industrial applications with IP65 protection and IK08 impact rating. Replaces traditional 1000 W metal halide/HID installations while reducing power draw and maintenance.

Key features

• Original Philips Lumileds LEDs
• Meanwell HLG-480H LED driver
• Dimmable (0-10V)
• IP65 ingress protection
• IK08 impact rating
• Marine-grey housing
• Long lifespan: 80,000 hours
• Surge protection: 10 kV

Product Specifications

• SKU: JNHM2-450S-5700-A4-DIM
• Power consumption: 450 W (system power 495 W)
• Total luminous flux: 51,500 lm
• Efficacy: 120 lm/W
• Colour temperature: 5700 K (cool white)
• CRI: >70
• Beam angle: 30° (15°×15° fixed, symmetric)
• Input voltage: 120–277 V AC (347–488 V AC optional)
• Power factor: >0.95
• Dimming: 0–10 V
• LED type: Philips Lumileds (4 modules)
• Driver: Meanwell HLG-480H
• Surge protection: 10 kV
• Lens: tempered glass
• Operating temperature: -20°C to 45°C
• Operating humidity: 10%–95% RH
• Lifespan: 80,000 hours
• Dimensions (H×L×W): 550 × 480 × 320 mm
• Net weight: 10 kg

Packaging & Shipping

• Export carton dimensions: 900 × 700 × 320 mm
• Products per carton: 2
• Export carton gross weight: 13 kg

Technical specifications

• SKU: JNHM2-450S-5700-A4-DIM
• System power: 495 W
• Input cable: H07RN-F 3G1.0
• IK rating: IK08
• IP rating: IP65
• Fixture colour: Marine-grey
