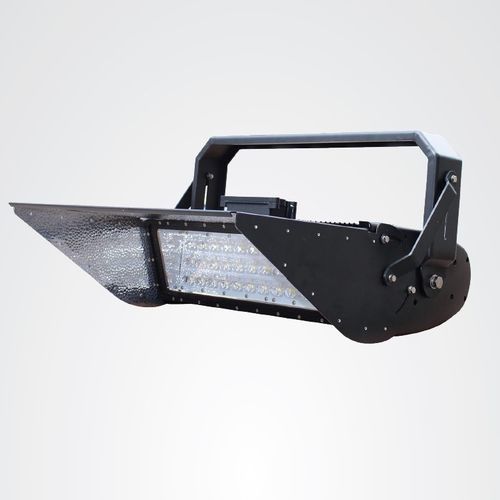

LED floodlight JNHM2-2450S-5000-A1-DIM

IP65IK 08shock resistant

Short description
2450 W LED high-mast floodlight fitted with Philips Lumileds and Meanwell HLG-1000H drivers. 5000 K (cool white), symmetric 15°x15° beam, dimmable via 0-10V. IP65 protection and IK08 impact rating. Total luminous flux 281,500 lm; efficacy 120 lm/W; rated life 80,000 hours.

Product Specifications (table)
Product SKU: JNHM2-2450S-5000-A1-DIM
Power Consumption: 2450 W
System Power: 2495 W
Input Voltage Range: 120-277V AC (347-488V AC optional)
Beam Angle: 15° x 15° (fixed), symmetric
IP Rating: IP65
IK Rating: IK08
LED Type: Philips Lumileds
LED Driver Brand: Meanwell HLG-1000H
Color Temperature: 5000 K (cool white)
CRI: >70
Dimming Capability: 0-10V
Power Factor: >0.95
Surge Protection: 10 kV
Lens Material: Tempered Glass
Number of LED Modules: 8
Total Lumens Output: 281,500 lm
Efficacy: 120 lm/W
Lifespan (Hours): 80,000 hours
Working Temperature Range: -20°C to 45°C
Working Humidity Range: 10% - 95% RH
Fixture Dimensions (H×L×W): 550 mm × 480 mm × 320 mm
Net Weight: 44 kg

Packaging & Shipping (table)
Net Weight (per unit): 44 kg
Export Carton Dimensions (mm): 900×700×320
Products per Carton: 2
Export Carton Gross Weight (kg): 47 kg
Fixture Dimensions (H×L×W): 550 × 480 × 320 mm

Technical specifications

• Product SKU: JNHM2-2450S-5000-A1-DIM
• Power Consumption: 2450 W (System: 2495 W)
• Input Voltage: 120-277V AC (347-488V AC optional)
• Beam Angle: 15° x 15° fixed, symmetric
• IP/IK Rating: IP65 / IK08
• LED: Philips Lumileds, 8 modules
• Driver: Meanwell HLG-1000H
• Color Temperature: 5000 K (cool white)
• CRI: >70
• Dimming: 0-10V
• Power Factor: >0.95
• Surge Protection: 10 kV
• Lens: Tempered glass
• Total Lumen Output: 281,500 lm (120 lm/W)
• Lifespan: 80,000 hours
• Operating Temp/Humidity: -20°C to 45°C / 10%-95% RH
• Housing Colour: Marine-Grey
• Input Cable: H07RN-F 3G2.5
• Fixture Dimensions (H×L×W): 550 × 480 × 320 mm
• Net Weight: 44 kg
