LED floodlight JNHM1-450S-5000-A3-DIM

HIDHPSIP65

Short description
450 W LED high-mast floodlight JNHM1-450S-5000-A3-DIM with Philips Lumileds LEDs and Meanwell HLG-480H driver. Dimmable (0-10V). IP65 and IK08 rated for outdoor high-mast installations. 5000 K cool white, total output 63,500 lm, efficacy 140 lm/W. Replaces 100 W metal halide/HID/HPS.

Features

• Dimmable (0-10V)
• High IP65 and IK08 protection for outdoor/high-mast use
• Philips Lumileds LEDs for high efficacy and long life
• Meanwell HLG-480H LED driver with PF >0.95
• Tempered glass lens and 40°x140° Type III beam (fixed)
• Surge protection 10 kV, operating -20°C to 45°C

Product images (selected)

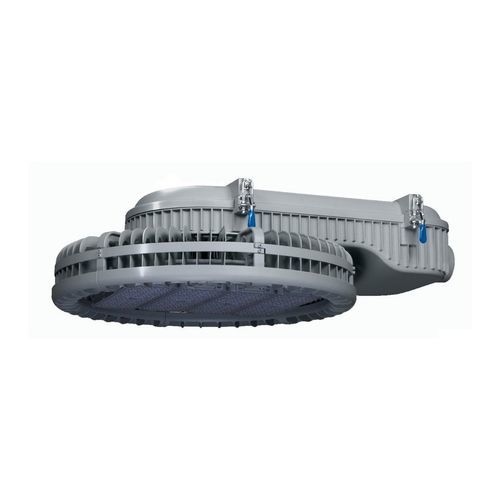

Main product and dimension images available: JN_450W_630W_HM1-256.jpg and JN_450W_630W_HM1_DIMENSIONS-247.jpg

Product Specifications (table)
Product SKU: JNHM1-450S-5000-A3-DIM
Power Consumption: 450 W (System power 495 W)
Input Voltage: 120-277V (optional 347~488V AC)
Beam Angle (°): 40°x140° (Type III)
IP Rating: IP65
IK Rating: IK08
Color Rendering Index: >70
LED Type: Philips Lumileds
Colour Temperature (K): 5000 K
Dimming Capability: 0-10V
LED Driver Brand: Meanwell HLG-480H
Lens Material: Tempered Glass
Number of LED Modules: 4
Total Lumens Output: 63,500 lm
Efficacy (lm/W): 140 lm/W
Lifespan (Hours): 80,000 hours
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10% - 95% RH
Power Factor: >0.95
Surge Protection: 10kV
Input Cable: H07RN-F 3G1.0
Housing Colour: Marine-Grey
Warranty Period (Years): 5
Fixture Height (mm): 854 mm
Fixture Length (mm): 610 mm
Fixture Width (mm): 238 mm

Packaging & Shipping (table)
Net Weight (kg): 30 kg
Export Carton Dimensions (mm): 900×700×320 mm
Products per Carton: 2
Export Carton Gross Weight (kg): 34 kg
Fixture Height (mm): 854 mm
Fixture Width (mm): 238 mm
Fixture Length (mm): 610 mm

Technical specifications

• SKU: JNHM1-450S-5000-A3-DIM
• Power consumption: 450 W (system power 495 W)
• Input voltage: 120-277V (option for 347~488V AC)
• Beam angle: 40° x 140° fixed (Type III)
• IP rating: IP65
• IK rating: IK08
• CRI: >70
• LED type: Philips Lumileds
• Colour temperature: 5000 K
• Dimming: 0-10V
• LED driver: Meanwell HLG-480H
• Surge protection: 10 kV
• Power factor: >0.95
• Lens material: Tempered glass
• Number of LED modules: 4
• Total lumen output: 63,500 lm
• Efficacy: 140 lm/W
• Lifespan: 80,000 hours
• Operating temperature: -20°C to 45°C
• Operating humidity: 10%–95% RH
• Input cable: H07RN-F 3G1.0
• Housing colour: Marine-Grey
• Warranty: 5 years
• Fixture dimensions (H×L×W): 854 × 610 × 238 mm
• Net weight: 30 kg
• Packaging: export carton 900 × 700 × 320 mm (2 products per carton; gross weight 34 kg)
