LED floodlight JNHM2-450S-5000-A4-DIM

HIDHPSIP65

Product overview

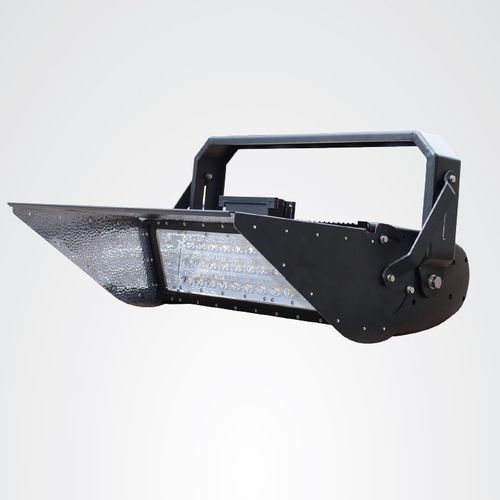

450 W LED high-mast floodlight equipped with Philips Lumileds and Meanwell HLG-480H driver. Dimmable via 0-10V, IP65 ingress protection and IK08 impact rating. Suited for industrial high-mast, stadium and area lighting. Replaces 100 Watt metal halide/HID/HPS in equivalent installations.

Features

• Dimmable via 0-10V
• Original Philips Lumileds LEDs
• Meanwell HLG-480H LED driver
• IP65 ingress protection, IK08 impact rating
• Marine-Grey housing colour
• Long lifespan: 80,000 hours
• Total luminous flux: 51,500 lm, efficacy 120 lm/W

Product Specifications
Product SKU: JNHM2-450S-5000-A4-DIM
Power Consumption: 450 W
Input Voltage: 120-277 V AC (347~488 V optional)
Beam Angle (°): 30° (symmetric)
IP Rating: IP65
Color Rendering Index (CRI): >70
LED Type: Philips Lumileds
Colour Temperature (K): 5000 K
IK Impact Rating: IK08
Dimming Capability: 0-10V
Housing Colour: Marine-Grey
Warranty Period: 5 years
Power Factor: >0.95
Surge Protection: 10kV
Input Cable: H07RN-F 3G1.0
Operating Temperature Range: -20°C to 45°C
Working Humidity Range: 10% - 95% RH
Lifespan: 80,000 hours
Total Lumens Output: 51,500 lm
Efficacy: 120 lm/W
Beam Angle Range: 15°x15° (Fixed)
Number of LED Modules: 4 modules
LED Driver Brand: Meanwell HLG-480H
Lens Material: Tempered Glass
System Power (W): 495 W
Input Voltage Range: 120-277V AC / 347~488V AC (optional)
Fixture Height × Length × Width (mm): 550 × 480 × 320 mm

Packaging & Shipping
Net Weight (kg): 10 kg
Export Carton Dimensions (mm): 900 × 700 × 320 mm
Products per Carton: 2
Export Carton Gross Weight (kg): 13 kg

Technical specifications

• SKU: JNHM2-450S-5000-A4-DIM
• Power: 450 W
• Input voltage: 120–277 V AC (347–488 V optional)
• Beam angle: 30° symmetric
• IP/IK rating: IP65 / IK08
• CRI: >70
• LED: Philips Lumileds, 5000 K
• Lumens / Efficacy: 51,500 lm / 120 lm/W
• Driver: Meanwell HLG-480H, dimmable 0-10V
• Warranty: 5 years
