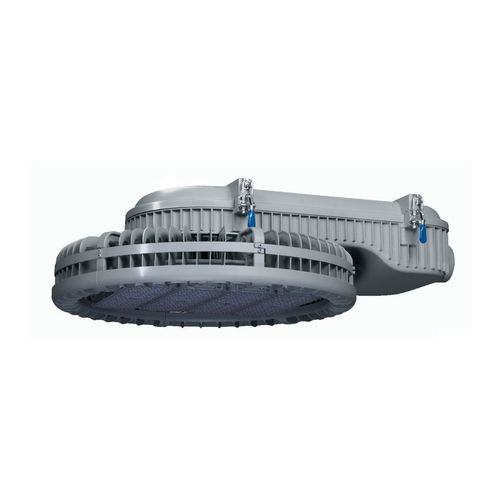

LED floodlight JNHM1-450S-5000-A1-DIM

HIDHPSIP65

Description
450 Watt LED floodlight for high-mast and area illumination, engineered for industrial outdoor environments. Equipped with original Philips Lumileds LEDs and Meanwell HLG-480H driver. Dimmable (0-10V) and rated IP65 for exterior use. Replaces 100 Watt metal halide/HID/HPS.

Features

• Original Philips Lumileds LEDs
• Meanwell HLG-480H LED driver
• Dimmable (0-10V)
• Ingress protection IP65
• IK08 impact rating
• Marine-Grey housing
• High efficacy: 140 lm/W
• Long lifespan: 80,000 hours
• Surge protection 10kV

Packaging & Shipping (summary)
Net Weight: 30 kg
Export Carton Dimensions: 900×700×320 mm
Products per Carton: 2
Export Carton Gross Weight: 34 kg

Technical specifications

• Product SKU: JNHM1-450S-5000-A1-DIM
• Power Consumption: 450 W
• Input Voltage: 120-277
• Beam Angle (°): 30°x100° (Type I)
• IP Rating: IP65
• Color Rendering Index (CRI): >70
• LED Type: Philips Lumileds
• Colour Temperature (K): 5000
• IK Impact Rating: IK08
• Dimming Capability: 0-10V
• Housing Colour: Marine-Grey
• Warranty Period (Years): 5
• Power Factor: >0.95
• Surge Protection: 10kV
• Input Cable: H07RN-F 3G1.0
• Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 95% RH
• Lifespan (Hours): 80,000 hours
• Beam Angle Range: 30°x100° (Fixed)
• Beam Angle Format: Type I
• Number of LED Modules: 4 modules
• LED Driver Brand: Meanwell HLG-480H
• Lens Material: Tempered Glass
• System Power (W): 495 W
• Input Voltage Range: 120-277V AC / 347~488V AC (optional)
• Fixture Height (mm): 854 mm
• Fixture Length (mm): 610 mm
• Fixture Width (mm): 238 mm
• Total Lumens Output: 63,500 lm
• Efficacy (lm/W): 140 lm/W
