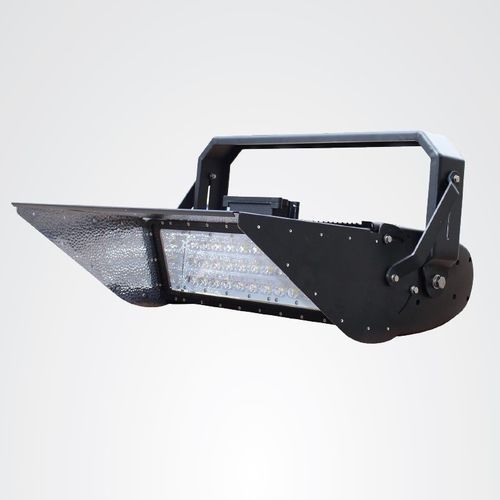

LED floodlight JNHM2-450S-5000-A3-DIM

HIDHPSIP65

Short description
450 W LED high-mast floodlight fitted with Philips Lumileds and Meanwell HLG-480H drivers. Dimmable (0-10V). IP65 rated for outdoor high-mast applications. Total output 51,500 lm at 120 lm/W, 5000 K (cool white). Designed to replace 100 W metal halide/HID/HPS fixtures.

Key features

• Philips Lumileds LED modules
• Meanwell HLG-480H LED driver
• Dimmable via 0-10V control
• IP65 for outdoor use
• IK08 impact resistance
• High efficacy: 120 lm/W
• Total luminous flux: 51,500 lm
• System power: 495 W
• Colour temperature: 5000 K (cool white)
• Housing colour: Marine-Grey
• Surge protection: 10 kV
• Designed lifetime: 80,000 hours

Product specifications
Product SKU: JNHM2-450S-5000-A3-DIM
Power Consumption: 450 W
Input Voltage: 120-277 V (347–488 V optional)
Beam Angle (°): 60°
IP Rating: IP65
Color Rendering Index: >70
LED Type: Philips Lumileds
Color Temperature (K): 5000 K
IK Impact Rating: IK08
Dimming Capability: 0-10V
Housing Colour: Marine-Grey
Warranty Period: 5 years
Power Factor: >0.95
Surge Protection: 10 kV
Input Cable: H07RN-F 3G1.0
Operating Temperature: -20°C to 45°C
Operating Humidity: 10%–95% RH
Lifespan: 80,000 hours
Beam Angle Range: 15°x15° (fixed)
Beam Format: Symmetric
Number of LED Modules: 4
LED Driver Brand: Meanwell HLG-480H
Lens Material: Tempered Glass
System Power: 495 W
Fixture Dimensions (H×L×W): 550 mm × 480 mm × 320 mm
Total Lumens Output: 51,500 lm
Efficacy: 120 lm/W

Technical specifications

• SKU: JNHM2-450S-5000-A3-DIM
• Rated Power: 450 W (System 495 W)
• Input Voltage Range: 120–277 V AC (347–488 V AC optional)
• Driver: Meanwell HLG-480H
• LEDs: Philips Lumileds
• Colour Temperature: 5000 K
• CRI: >70
• Beam Angle: 60° (15°x15° fixed, symmetric)
• Luminous Flux: 51,500 lm
• Efficacy: 120 lm/W
• Surge Protection: 10 kV
• Ingress Protection: IP65
• Impact Rating: IK08
• Dimming: 0-10V
• Housing Colour: Marine-Grey
• Lens: Tempered glass
• Modules: 4 LED modules
• Dimensions: 550 × 480 × 320 mm (H×L×W)
• Net Weight: 10 kg
• Operating Temperature: -20°C to 45°C
• Operating Humidity: 10%–95% RH
• Lifetime: 80,000 hours
• Warranty: 5 years
