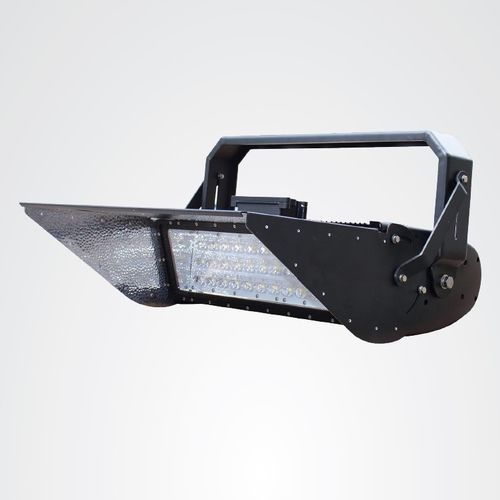

LED floodlight JNHM2-2450S-5700-A1-DIM

HIDHPSIP65

Short description
2450 W LED high-mast flood light with Philips Lumileds LEDs and Meanwell driver(s). Dimmable via 0-10V control, fixed symmetric 15°×15° beam, IP65 ingress protection.

Features

• Dimmable (0-10V)
• Philips Lumileds LEDs
• Meanwell HLG-1000H LED driver
• IP65 ingress protection
• IK08 impact rating
• Fixed symmetric beam 15°×15°
• Tempered glass lens
• Marine-grey housing
• Surge protection 10 kV
• Power factor >0.95
• Lifespan 80,000 hours
• Warranty 5 years

Product Specifications (table)
Product SKU: JNHM2-2450S-5700-A1-DIM
Power Consumption: 2450 W
System Power (nominal): 2495 W
Input Voltage: 120-277 V AC (optional 347-488 V AC)
Beam Angle (°): 15°
Beam Angle Range: 15°×15° (fixed, symmetric)
IP Rating: IP65
Color Rendering Index (CRI): >70
LED Type: Philips Lumileds
Colour Temperature (CCT): 5700 K
IK Impact Rating: IK08
Dimming Capability: 0-10V
Housing Colour: Marine-Grey
Warranty Period: 5 years
Power Factor: >0.95
Surge Protection: 10 kV
Input Cable: H07RN-F 3G2.5
Working Temperature Range: -20°C to 45°C
Working Humidity Range: 10%-95% RH
Lifespan: 80,000 hours
Number of LED Modules: 8 modules
LED Driver Brand: Meanwell HLG-1000H
Lens Material: Tempered glass
Fixture Dimensions (HxLxW): 550 × 480 × 320 mm
Net Weight: 44 kg
Total Lumens Output: 281,500 lm
Efficacy: 120 lm/W

Packaging & Shipping
Net Weight (per unit): 44 kg
Export Carton Dimensions: 900 × 700 × 320 mm
Products per Carton: 2
Export Carton Gross Weight: 47 kg
Fixture Dimensions (HxLxW): 550 × 480 × 320 mm

Specification details (summary)
2450 W LED flood light for high-mast applications using Philips Lumileds and Meanwell components, dimmable 0-10V, fixed 15°×15° beam, IP65 protection, designed to replace 100 W metal halide/HID/HPS luminaires.

Technical specifications

• Model SKU: JNHM2-2450S-5700-A1-DIM
• System Power: 2495 W (nominal consumption 2450 W)
• Input Voltage: 120-277 V AC (optional 347-488 V AC)
• Beam: 15°×15° symmetric (fixed)
• LEDs: Philips Lumileds, 8 modules
• Driver: Meanwell HLG-1000H, dimmable 0-10V
• Lumen Output: 281,500 lm; Efficacy: 120 lm/W
• CRI: >70; CCT: 5700 K
• IP Rating: IP65; IK Rating: IK08
• Lens: Tempered glass; Housing colour: Marine-Grey
• Surge Protection: 10 kV; Power Factor: >0.95
• Operating Temperature: -20°C to 45°C; Humidity: 10%-95% RH
• Lifespan: 80,000 hours; Warranty: 5 years
• Dimensions (HxLxW): 550 × 480 × 320 mm; Net weight: 44 kg
