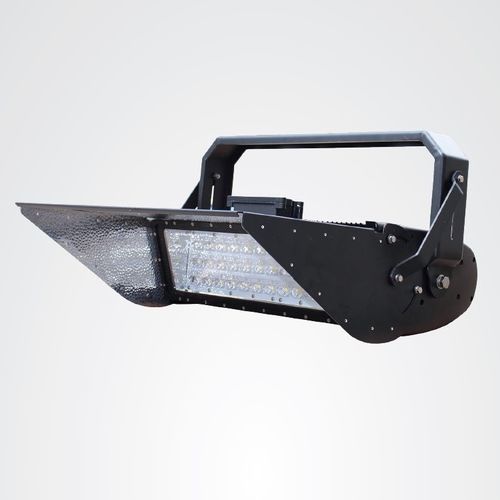

LED floodlight JNHM2-450S-5700-A1-ND

HIDHPSIP65

Description
450 Watt LED floodlight designed for high-mast and large-area installations. Fitted with Philips Lumileds LEDs and Meanwell HLG-480H driver(s). Non-dimmable. IP65 rated for outdoor use. Suitable as a retrofit replacement for 100 W metal halide/HID/HPS luminaires.

Features

• Original Philips Lumileds LEDs
• Meanwell HLG-480H driver(s)
• Non-dimmable
• IP65 ingress protection for outdoor environments
• Replaces 100 W metal halide / HID / HPS fixtures
• High total lumen output: 51,500 lm (approx. 120 lm/W efficacy)
• Designed for long lifespan: 80,000 hours

Product Specifications
Product SKU: JNHM2-450S-5700-A1-ND
Power Consumption: 450 W
System Power (W): 495 W
Input Voltage: 120-277 V AC (347~488 V AC optional)
Beam Angle (°): 30°
Beam Angle Range: 15°x15° (Fixed)
Beam Angle Format: Symmetric
IP Rating: IP65
IK Impact Rating: IK08
Color Rendering Index (CRI): >70
LED Type: Philips Lumileds
Color Temperature (K): 5700 K
Number of LED Modules: 4 modules
LED Driver Brand: Meanwell HLG-480H
Dimming Capability: Non-dimmable
Housing Colour: Marine-Grey
Lens Material: Tempered Glass
Power Factor: >0.95
Surge Protection: 10 kV
Input Cable: H07RN-F 3G1.0
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%–95% RH
Lifespan (Hours): 80,000 hours
Warranty Period (Years): 5


Packaging & Shipping
Net Weight (kg): 10 kg
Export Carton Dimensions (mm): 900 × 700 × 320 mm
Products per Carton: 2
Export Carton Gross Weight (kg): 13 kg
Fixture Height (mm): 550 mm
Fixture Width (mm): 320 mm
Fixture Length (mm): 480 mm


Technical specifications

• SKU: JNHM2-450S-5700-A1-ND
• Power: 450 W (system power 495 W)
• Input voltage: 120-277 V AC (347~488 V AC optional)
• Beam angle: 30° (symmetric)
• IP rating: IP65
• CRI: >70
• LED: Philips Lumileds
• CCT: 5700 K
• IK rating: IK08
• Dimming: Non-dimmable
• Housing colour: Marine-Grey
• Warranty: 5 years
• Power factor: >0.95
• Surge protection: 10 kV
• Input cable: H07RN-F 3G1.0
• Operating temperature: -20°C to 45°C
• Operating humidity: 10%–95% RH
• Lifespan: 80,000 hours
• Number of LED modules: 4
• Driver: Meanwell HLG-480H
• Lens: Tempered Glass
• Total output: 51,500 lm (120 lm/W)
• Fixture dimensions (H×L×W): 550 × 480 × 320 mm
