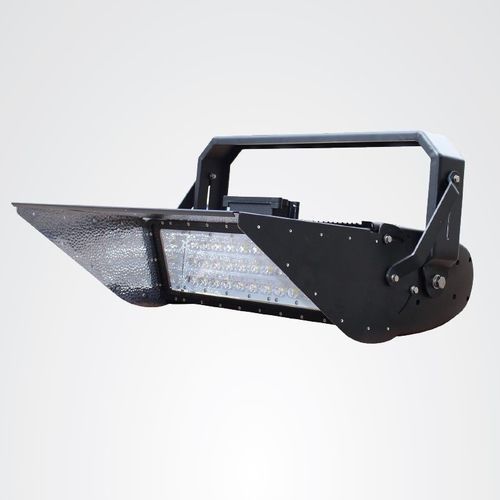

LED floodlight JNHM2-2450S-5000-A3-DIM

IP65IK 08outdoor

Product summary
2450 W high-mast LED floodlight designed for large-area outdoor and industrial illumination. Integrates original Philips Lumileds LEDs and Meanwell HLG-1000H drivers. Dimmable via 0-10V, IP65-rated and IK08 impact resistant. Delivers 281,500 lm total luminous flux with an expected lifetime of 80,000 hours, suitable for demanding high-mast applications.

Features

• Original Philips Lumileds LEDs
• Meanwell HLG-1000H LED driver(s)
• Dimmable via 0-10V
• Ingress Protection: IP65
• IK08 impact rating
• High system power and lumen output suitable for high mast applications
• Tempered glass lens
• Marine-Grey housing colour
• Surge protection 10kV
• Designed for wide operating humidity and temperature ranges

Product specifications (table)
Product SKU: JNHM2-2450S-5000-A3-DIM
Power Consumption: 2450 W
System Power (W): 2495 W
Input Voltage / Input Voltage Range: 120-277V AC (standard) / 120-277V AC / 347~488V AC (optional)
Input Voltage (detail): 120-277 V (also shown as 120-277V AC / 347~488V AC optional)
Input Cable: H07RN-F 3G2.5
LED Type: Philips Lumileds
LED Driver Brand: Meanwell HLG-1000H
Number of LED Modules: 8 modules
Total Lumens Output: 281,500 lm
Efficacy (lm/W): 120 lm/W
Beam Angle (°): 60° (table entry) / Beam Angle Range: 15°x15° (Fixed)
Beam Angle Format: Symmetric
Colour Temperature (K): 5000 K
Color Rendering Index (CRI): >70
Power Factor: >0.95
Dimming Capability: 0-10V
Surge Protection: 10kV
Lens Material: Tempered Glass
IP Rating: IP65
IK Impact Rating: IK08
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10% - 95% RH
Lifespan (Hours): 80,000 hours
Fixture Height (mm): 550 mm
Fixture Length (mm): 480 mm
Fixture Width (mm): 320 mm
Housing Colour: Marine-Grey
Warranty Period (Years): 5

Packaging & Shipping
Net Weight (kg): 44 kg
Export Carton Dimensions (mm): 900×700×320 mm
Products per Carton: 2
Export Carton Gross Weight (kg): 47 kg
Fixture Height (mm): 550 mm
Fixture Width (mm): 320 mm
Fixture Length (mm): 480 mm

Technical specifications

• SKU: JNHM2-2450S-5000-A3-DIM
• Power Consumption: 2450 W
• System Power: 2495 W
• Input Voltage: 120-277V AC (standard); optional 347~488V AC
• LEDs: Philips Lumileds
• Driver: Meanwell HLG-1000H
• Number of LED modules: 8
• Total lumen output: 281,500 lm
• Efficacy: 120 lm/W
• Beam angle: 60° (spec), 15°x15° fixed (beam range)
• Colour temperature: 5000 K
• CRI: >70
• Dimming: 0-10V
• IP Rating: IP65
• IK Rating: IK08
• Surge protection: 10 kV
• Lens: Tempered glass
• Housing colour: Marine-Grey
• Power factor: >0.95
• Working temperature: -20°C to 45°C
• Working humidity: 10%–95% RH
• Lifespan: 80,000 hours
• Fixture dimensions (H×L×W): 550×480×320 mm
• Net weight: 44 kg
• Warranty: 5 years
