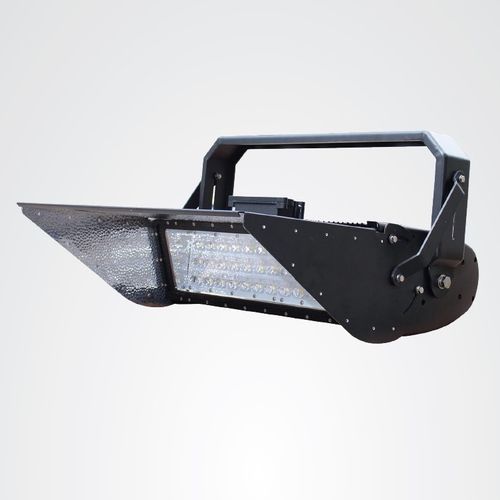

LED floodlight JNHM2-450S-5700-A3-DIM

HIDHPSIP65

Description
450 Watt LED flood light designed for high-mast and large-area lighting applications. Equipped with Philips Lumileds LEDs and Meanwell HLG-480H driver, dimmable via 0-10V. IP65 and IK08 rated enclosure for outdoor use. Replaces 100 Watt metal halide/HID/HPS in specific installations.

Features

• Dimmable (0-10V)
• Original Philips Lumileds LEDs
• Meanwell HLG-480H driver
• IP65 rated enclosure
• IK08 impact rating
• High efficacy: 120 lm/W
• Long lifespan: 80,000 hours

Product Specifications
Product SKU: JNHM2-450S-5700-A3-DIM
Power Consumption: 450 W
System Power (W): 495 W
Input Voltage: 120-277 V AC (option: 347~488 V AC)
Beam Angle (°): 60° (fixed 15°x15° module format)
IP Rating: IP65
IK Impact Rating: IK08
Color Rendering Index: >70
LED Type: Philips Lumileds
Color Temperature: 5700 K
Dimming Capability: 0-10V
LED Driver Brand: Meanwell HLG-480H
Surge Protection: 10 kV
Power Factor: >0.95
Input Cable: H07RN-F 3G1.0
Lens Material: Tempered Glass
Number of LED Modules: 4
Total Lumens Output: 51500 lm
Efficacy: 120 lm/W
Fixture Dimensions (H×L×W): 550 mm × 480 mm × 320 mm
Operating Temp: -20°C to 45°C
Working Humidity: 10%-95% RH
Lifespan: 80,000 hours

Packaging & Shipping
Net Weight: 10 kg
Export Carton Dimensions: 900 × 700 × 320 mm
Products per Carton: 2
Export Carton Gross Weight: 13 kg

Technical specifications

• Power: 450 W
• System Power: 495 W
• Input Voltage Range: 120-277 V AC (optional 347~488 V AC)
• Dimming: 0-10V
• LED: Philips Lumileds
• Driver: Meanwell HLG-480H
• Colour Temperature: 5700 K
• CRI: >70
• Lumen Output: 51500 lm
• Efficacy: 120 lm/W
• IP Rating: IP65
• IK Rating: IK08
• Surge Protection: 10 kV
• Operating Temp: -20°C to 45°C
• Working Humidity: 10%-95% RH
• Lifespan: 80,000 hours
• Housing Colour: Marine-Grey
• Dimensions (H×L×W): 550 × 480 × 320 mm
• Net Weight: 10 kg
