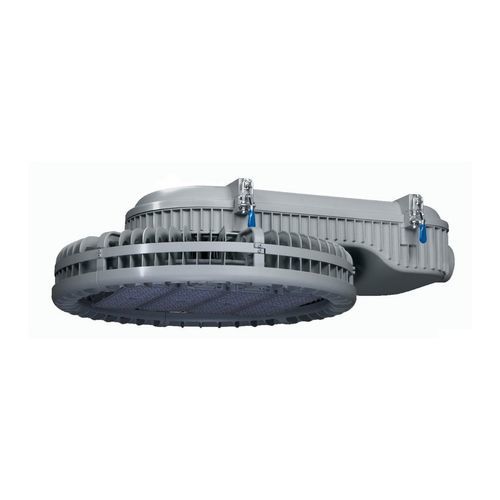

Lamp floodlight JNHM1-450S-5000-A2-DIM

LEDHIDHPS

Description
450 Watt LED flood light with original Philips Lumileds and Meanwell HLG-480H driver. Dimmable (0-10V). IP65 enclosure and IK08 impact rating. Designed for high-mast and large-area lighting, delivering 63,500 lm at 140 lm/W with a color temperature of 5000 K. Replaces 100 Watt metal halide/HID/HPS.

Features

• Original Philips Lumileds LEDs
• Meanwell HLG-480H LED driver
• Dimmable (0-10V)
• IP65 ingress protection
• IK08 impact rating
• Colour temperature 5000K
• CRI >70
• Total lumens 63,500 lm, efficacy 140 lm/W
• Lifespan 80,000 hours
• Warranty 5 years

Product Specifications (table)
Product SKU: JNHM1-450S-5000-A2-DIM
Power Consumption: 450 W
Input Voltage: 120-277 V
Beam Angle (°): 50°
IP Rating: IP65
Color Rendering Index: >70
LED Type: Philips Lumileds
Color Temperature (K): 5000
IK Impact Rating: IK08
Dimming Capability: 0-10V
Housing Colour: Marine-Grey
Warranty Period (Years): 5
Power Factor: >0.95
Surge Protection: 10kV
Input Cable: H07RN-F 3G1.0
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-95% RH
Lifespan (Hours): 80,000 hours
Beam Angle Range: 50°x140° (Fixed)
Beam Angle Format: Type_ii
Number of LED Modules: 4 modules
LED Driver Brand: Meanwell HLG-480H
Lens Material: Tempered Glass
System Power (W): 495 W
Input Voltage Range: 120-277V AC / 347~488V AC (optional)
Fixture Height (mm): 854 mm
Fixture Length (mm): 610 mm
Fixture Width (mm): 238 mm
Total Lumens Output: 63,500 lm
Efficacy (lm/W): 140 lm/W

Technical specifications

• Power: 450 W
• System Power: 495 W
• Input Voltage: 120-277V (347~488V optional)
• Dimming: 0-10V
• LEDs: Philips Lumileds
• Driver: Meanwell HLG-480H
• Colour temperature: 5000 K
• CRI: >70
• Lumens: 63,500 lm
• Efficacy: 140 lm/W
• Lifespan: 80,000 hours
• IP Rating: IP65
• IK Rating: IK08
• Surge protection: 10kV
• Housing colour: Marine-Grey
• Warranty: 5 years
• Dimensions HxLxW (mm): 854 x 610 x 238
• Net Weight: 30 kg
• Input Cable: H07RN-F 3G1.0
