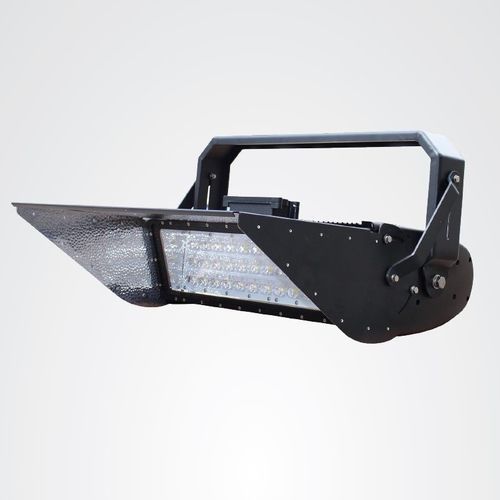

LED floodlight JNHM2-450S-5000-A1-ND

HIDHPSIP65

Product Description
450 W LED flood light engineered for high-mast and outdoor industrial applications. Fitted with original Philips Lumileds and Meanwell driver(s). Non-dimmable with IP65 protection and IK08 impact rating. Suitable for replacement of conventional HID/HPS fittings in large-area site lighting.

Features

• Original Philips Lumileds LEDs
• Meanwell HLG-480H driver
• Non-dimmable
• IP65 ingress protection
• IK08 impact rating
• Marine‑Grey housing

Product Specifications (table)
Product SKU: JNHM2-450S-5000-A1-ND
Power Consumption: 450 W
Input Voltage: 120-277 V (347~488 V optional)
Beam Angle (°): 30°
IP Rating: IP65
Color Rendering Index: >70
LED Type: Philips Lumileds
Color Temperature (K): 5000 K
IK Impact Rating: IK08
Dimming Capability: Non-dimmable
Housing Colour: Marine-Grey
Warranty Period (Years): 5
Power Factor: >0.95
Surge Protection: 10 kV
Input Cable: H07RN-F 3G1.0
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-95% RH
Lifespan (Hours): 80,000 hours
Beam Angle Range: 15°x15° (Fixed)
Beam Angle Format: Symmetric
Number of LED Modules: 4 modules
LED Driver Brand: Meanwell HLG-480H
Lens Material: Tempered Glass
System Power (W): 495 W
Fixture Height (mm): 550 mm
Fixture Length (mm): 480 mm
Fixture Width (mm): 320 mm
Total Lumens Output: 51,500 lm
Efficacy (lm/W): 120 lm/W

Packaging & Shipping
Net Weight (kg): 10 kg
Export Carton Dimensions (mm): 900×700×320 mm
Products per Carton: 2
Export Carton Gross Weight (kg): 13 kg
Fixture Height (mm): 550
Fixture Width (mm): 320
Fixture Length (mm): 480

Technical Specifications

• SKU: JNHM2-450S-5000-A1-ND
• Power Consumption: 450 W
• Input Voltage: 120-277 V (347~488 V AC optional)
• Beam Angle: 30° (symmetric)
• IP Rating: IP65
• CRI: >70
• LED Type: Philips Lumileds
• Colour Temperature: 5000 K
• IK Rating: IK08
• Dimming: Non-dimmable
• Housing Colour: Marine-Grey
• Warranty: 5 years
• Power Factor: >0.95
• Surge Protection: 10 kV
• Input Cable: H07RN-F 3G1.0
• Operating Temperature: -20°C to 45°C
• Operating Humidity: 10%-95% RH
• Lifespan: 80,000 hours
• Number of LED Modules: 4
• LED Driver: Meanwell HLG-480H
• Lens Material: Tempered Glass
• System Power: 495 W
• Total Lumens: 51,500 lm
• Efficacy: 120 lm/W
• Fixture Dimensions (H×L×W): 550 mm × 480 mm × 320 mm
