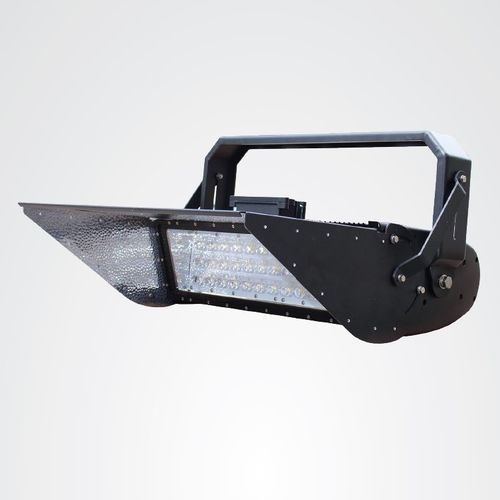

LED floodlight JNHM2-450S-5000-A4-ND

impact-resistantIP65IK 08

Short description
450 W high-mast LED floodlight designed for large outdoor areas. Equipped with Philips Lumileds LEDs and a Meanwell HLG-480H driver (non-dimmable). IP65 and IK08 rated for harsh outdoor environments. High luminous output (51,500 lm) and long rated life make it suitable for ports, yards, stadiums and industrial sites.

Features

• Cool white 5000K colour temperature
• Non-dimmable configuration
• High ingress protection: IP65
• Original Philips Lumileds LED modules
• Meanwell HLG-480H LED driver (integrated)
• Tempered glass lens for optical stability
• Robust impact rating IK08
• Built-in surge protection 10kV
• Rated lifespan: 80,000 hours

Product Specifications

• Product SKU: JNHM2-450S-5000-A4-ND
• Power Consumption: 450 W (System Power: 495 W)
• Input Voltage: 120–277V AC (optional 347–488V AC)
• Beam Angle: 60°x60° (fixed, symmetric)
• IP Rating: IP65
• Colour Temperature: 5000 K
• CRI: >70
• LED Type: Philips Lumileds
• LED Driver: Meanwell HLG-480H
• Lens Material: Tempered glass
• IK Impact Rating: IK08
• Power Factor: >0.95
• Surge Protection: 10kV
• Input Cable: H07RN-F 3G1.0
• Operating Temperature: -20°C to 45°C
• Operating Humidity: 10%–95% RH
• Lifespan: 80,000 hours
• Number of LED Modules: 4
• Fixture Dimensions (H×L×W): 550×480×320 mm
• Total Lumen Output: 51,500 lm
• Efficacy: 120 lm/W

Packaging & Shipping

• Net Weight (each): 10 kg
• Export Carton Dimensions: 900×700×320 mm
• Products per Carton: 2
• Export Carton Gross Weight: 13 kg

Applications

• High-mast lighting for ports and container yards
• Large outdoor industrial and logistics areas
• Stadiums, sports facilities and large open sites
• Airport aprons and perimeter lighting

Warranty & Compliance

• Warranty: 5 years
• Electrical protection and surge rating suitable for industrial installations
• Designed to meet outdoor and industrial environment requirements
