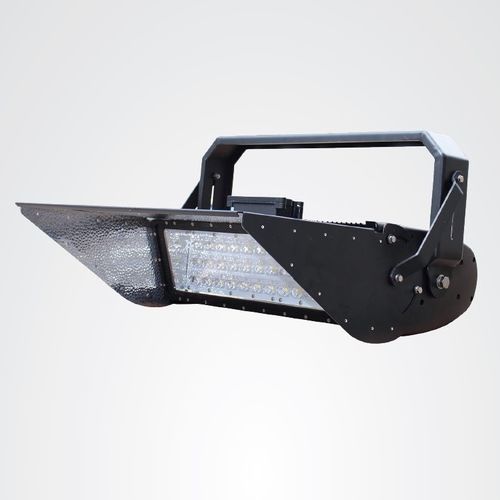

LED floodlight JNHM2-2450S-5000-A4-DIM

IP65IK 08shock resistant

Short description
2450 W LED high-mast luminaire fitted with Philips Lumileds modules and integrated Meanwell HLG-1000H drivers. 0-10V dimmable, IP65 and IK08 rated, designed for large-area industrial and outdoor lighting with a cool white 5000 K output and high system efficacy.

Key features

• High-power Philips Lumileds LED modules (8 modules)
• Integrated Meanwell HLG-1000H LED driver(s) with 0-10V dimming
• Ingress protection IP65 and impact rating IK08 for outdoor use
• High efficacy: 120 lm/W; total lumen output 281,500 lm
• Surge protection up to 10 kV
• Tempered glass lens and marine-grey housing

Product specifications
Product SKU: JNHM2-2450S-5000-A4-DIM
Power Consumption: 2450 W
System Power: 2495 W
Input Voltage: 120-277V AC (347~488V AC optional)
Input Cable: H07RN-F 3G2.5
Beam Angle: 30° (symmetric); listed range 15°x15° (fixed)
LED Type: Philips Lumileds
LED Driver Brand: Meanwell HLG-1000H
Color Temperature: 5000 K (cool white)
Color Rendering Index (CRI): >70
Efficacy: 120 lm/W; Total lumens: 281,500 lm
IP Rating: IP65
IK Impact Rating: IK08
Lens Material: Tempered glass
Dimming Capability: 0-10V
Surge Protection: 10 kV
Power Factor: >0.95
Working Temperature: -20°C to 45°C
Working Humidity: 10%-95% RH
Lifespan (Hours): 80,000 hours
Number of LED Modules: 8
Fixture Dimensions (H×L×W): 550×480×320 mm
Fixture Weight (Net): 44 kg
Warranty Period: 5 years


Packaging & Shipping
Net Weight (kg): 44 kg
Export Carton Dimensions (mm): 900×700×320 mm
Products per Carton: 2
Export Carton Gross Weight (kg): 47 kg
Fixture Height (mm): 550
Fixture Width (mm): 320
Fixture Length (mm): 480


Applications & notes for specifiers

• Suitable for high-mast installations: ports, yards, large industrial sites, airports and stadium perimeters
• Use appropriate surge and installation protections per local standards
• Optional input voltage 347~488V AC for specific grid requirements

Compliance & warranty

• Ingress and impact protection: IP65, IK08
• Surge protection: 10 kV integrated
• Power factor >0.95; CRI >70
• Rated lifespan: 80,000 hours
• Manufacturer warranty: 5 years
